CLUB3D USB Gen2 Type-C PD-Lade-Hub σε 2x Type-C 10G-θύρες και 2x USB Type-A 10G-θύρες

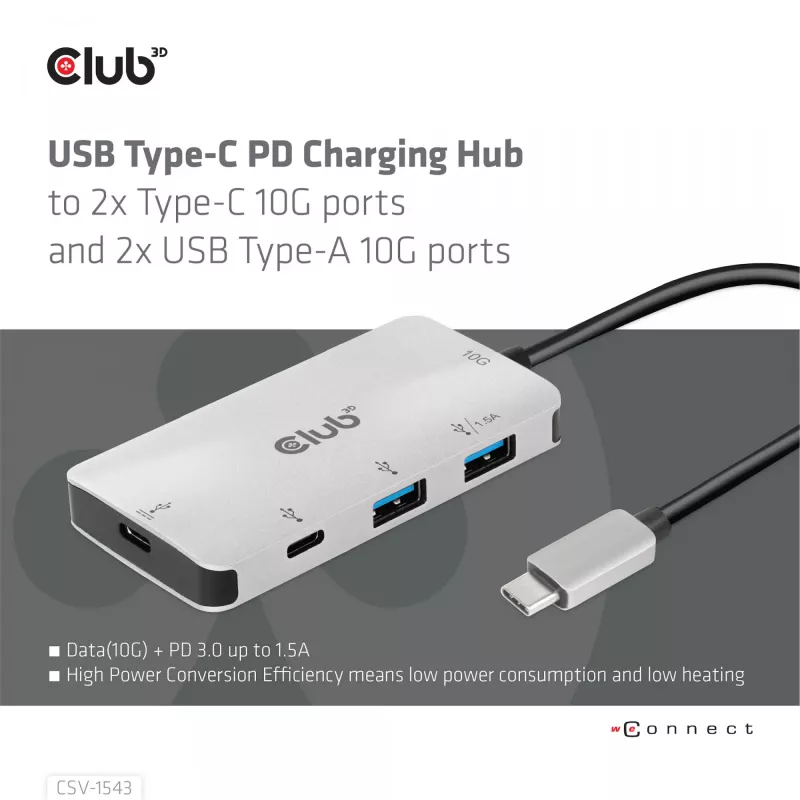

The CLUB3D CSV-1543 is a USB Gen2 Type-C PD charging hub that provides two USB Type-C 10G ports and two USB Type-A 10G ports. It supports USB 3.2 Gen 2 (also known as 3.1 Gen 2) high-speed data transfer and Power Delivery (PD) 3.0 charging, and is compatible with any USB Type-C host that supports PD (PC, notebook, tablet, mobile phone). The hub offers high power conversion efficiency to reduce power loss and heating, and features advanced power management to avoid disconnecting connected USB storage devices when the PD charger is plugged or unplugged.

Advantages

The hub combines data and charging in a compact aluminium-coloured housing with black accents, delivering up to PD3.0 charging on the designated Type-C PD port and data-only or charging-capable connections on the other ports. One Type-A port can supply up to 1.5 A for charging phones, tablets or USB accessories, while one Type-C port supports both data and PD3.0 charging. Power conversion efficiency is high (98.2% at Vin=5V; 92.5% at Vin=20V), lowering power consumption and heat generation. Built-in power management maintains stable operation of connected USB Type-A SSDs and flash drives during PD charger insertion/removal when used with PD-capable hosts.

Suitable for

• Expanding a USB-C port on a laptop, tablet or phone to multiple high-speed USB 3.2 Gen 2 ports
• Connecting external SSDs, flash drives and peripherals while also charging a USB-C device via PD
• Charging phones and tablets from a Type-A port that supplies up to 1.5 A
• Use with PD 3.0 hosts to avoid interruptions when swapping power sources

Key specifications

• Model: CLUB3D CSV-1543
• Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C

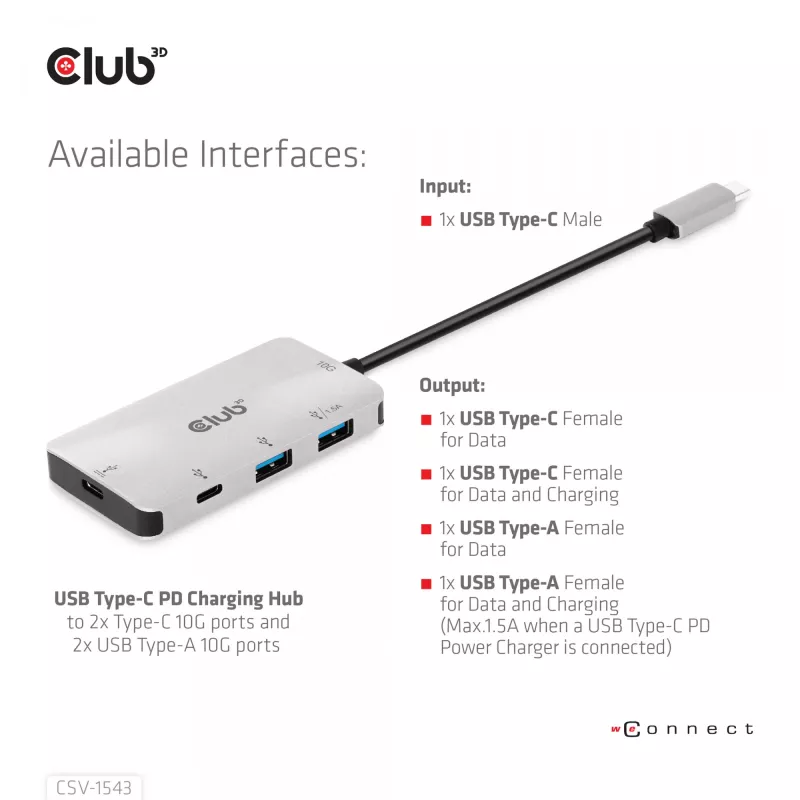

• Ports: 2× USB Type-C 10G, 2× USB Type-A 10G
• Power Delivery: PD 3.0 support on designated Type-C port (works with PD-capable hosts)
• Type-A charging: one Type-A port provides up to 1.5 A
• Power conversion efficiency: 98.2% @ Vin=5V; 92.5% @ Vin=20V
• Dimensions: 85 × 45 × 12 mm
• Weight: 0.06 kg
• Colour: Silver, Black
• Certifications: RoHS, FCC, CE EMI

How to use

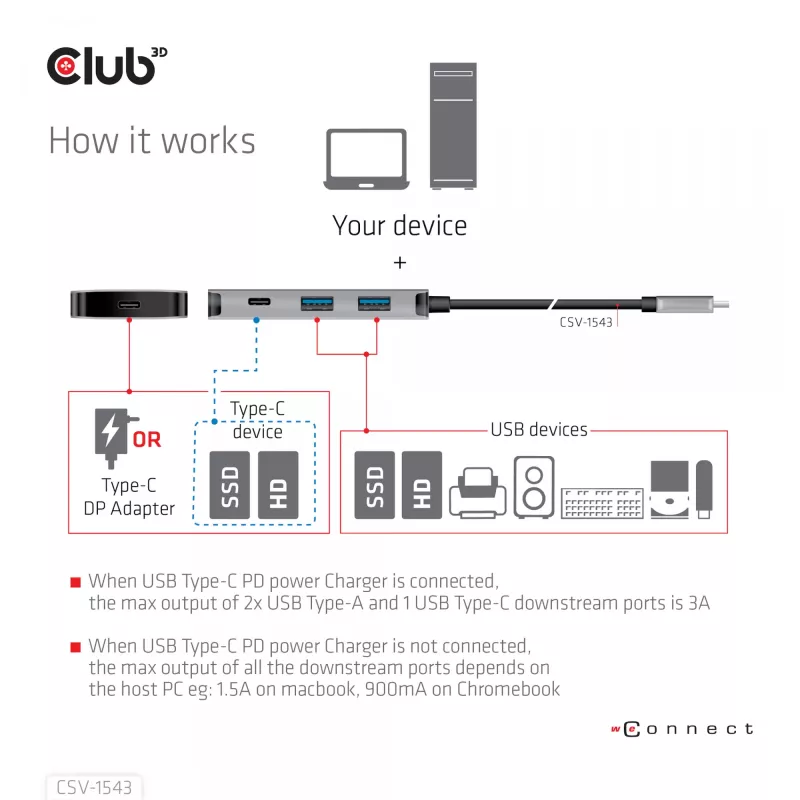

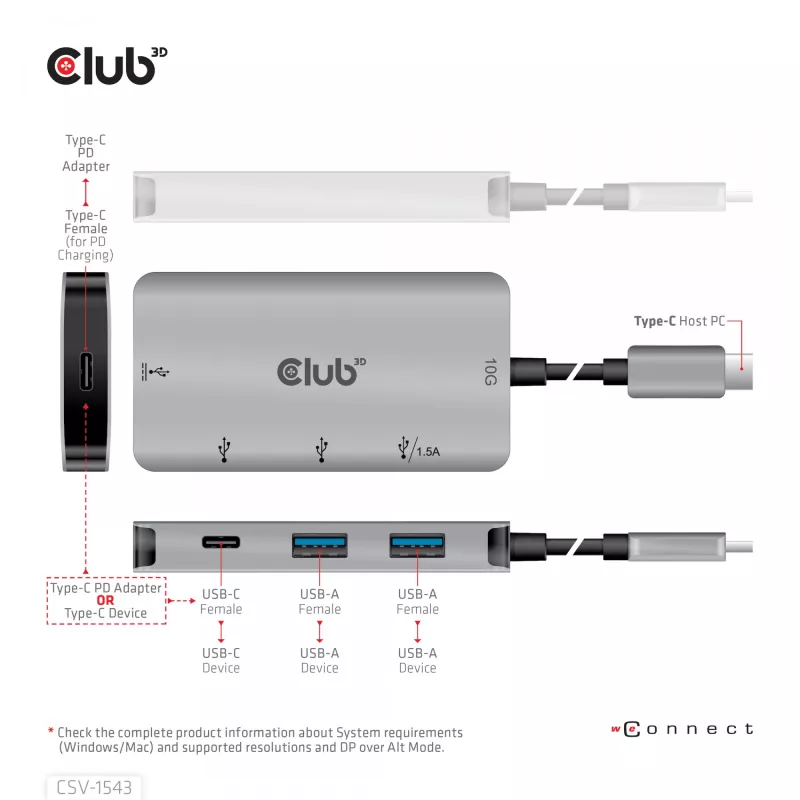

Connect the CLUB3D CSV-1543 to a USB Type-C host port that supports Power Delivery for PD charging features. Attach your USB Type-C or USB Type-A devices to the appropriate ports for data transfer or charging. Use the PD-capable Type-C port when you need Power Delivery charging for a connected device; use the Type-A charging port for devices that require up to 1.5 A. When plugging or unplugging a PD charger into the hub’s Type-C PD input, ensure the host supports PD 3.0 to benefit from fast role swap and avoid brief disconnections of attached USB storage devices.

Recommendations

For uninterrupted data access to USB Type-A SSDs and flash drives, use the hub with a host that supports Power Delivery 3.0. If a connected device draws more current than the specified 1.5 A from the Type-A port or if the host only supports PD 2.0, temporary disconnection and automatic reconnection may occur when plugging or unplugging the PD charger.
