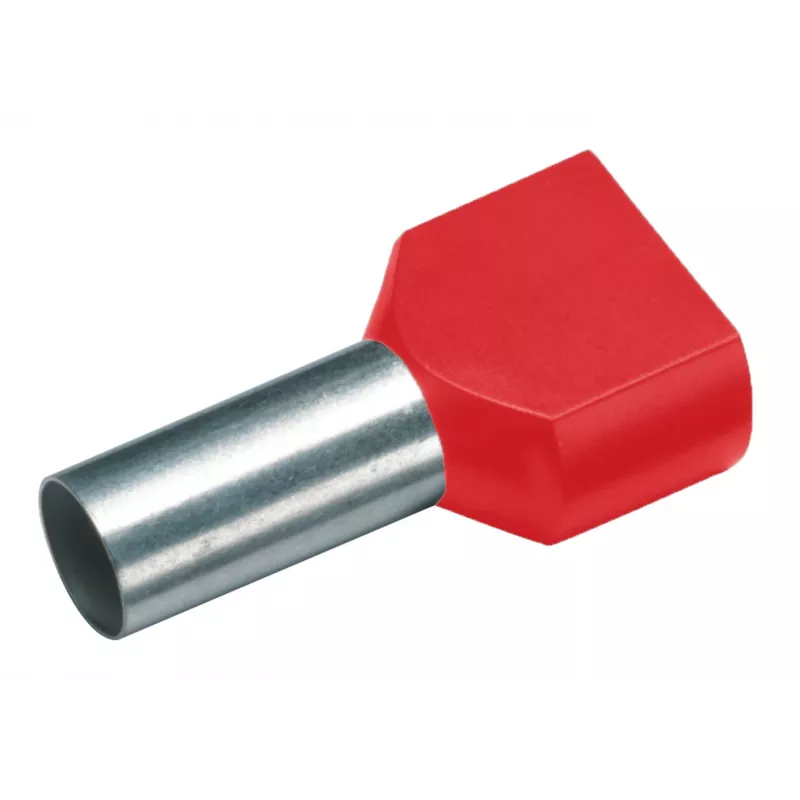

Cimco 187706 διπλός ακροδέκτης, 1 mm², μερικώς μονωμένος, κόκκινο, 100 τεμ.

Twin wire end sleeve for reliable connection of two conductors in a single ferrule. Partially insulated design with red polypropylene collar for easy identification and strain relief. Electrolytic copper sleeve with tin plating ensures excellent conductivity and corrosion resistance. Suitable for fine-stranded conductors up to 1 mm² total cross-section. Pack of 100 pieces.

Advantages

Secure twin conductor termination in one sleeve reduces wiring time and space. Tin-plated copper provides low contact resistance and long-term stability. Red insulation collar offers visual identification and protects against conductor bending at the entry point.

Suitable for

• Industrial control panels and switchgear
• Building installation and distribution boards
• Automation and machinery wiring

Key specifications

• Nominal cross-section: 1 mm² (twin entry)
• Insulation: partially insulated, red polypropylene
• Sleeve material: electrolytic copper, tin-plated
• Sleeve length: 8 mm, total length: 14 mm
• Inner diameter: 1.5 mm, outer diameter: 1.8 mm
• Insulation collar diameter: 4.0 mm
• Temperature resistance: -40°C to +105°C
• Standard: DIN 46228 Part 4

Recommendations

Use with appropriate crimping tool for twin wire end sleeves. Verify total conductor cross-section does not exceed 1 mm² to ensure proper crimp and secure connection.
