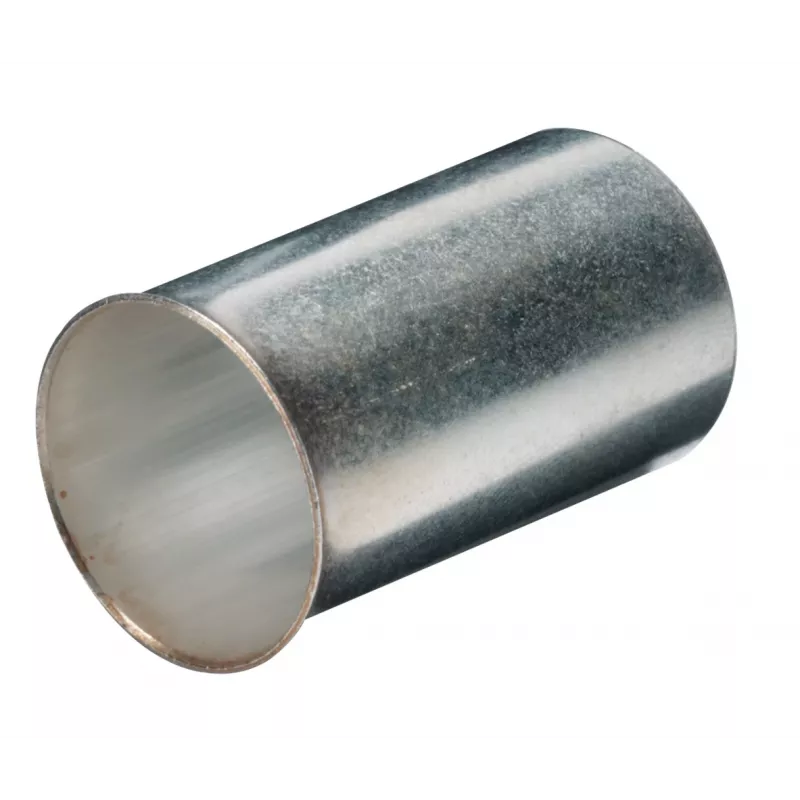

Cimco 187451 Ακροδέκτης 16 mm² αμόνωτος επικασσιτερωμένος 100 τεμ.

When terminating fine-stranded conductors, loose wire strands can cause poor contact, overheating, or even short circuits. The Cimco 187451 wire end ferrule provides a reliable solution by bundling the strands into a solid, uniform connection point for crimping.

Who is it for

Electricians, panel builders, and maintenance technicians who need dependable, gas-tight terminations for 16 mm² conductors in industrial or commercial installations.

Main features

• Uninsulated design for use in terminal blocks, connectors, and other applications where insulation is not required.
• Made from electrolytic copper with a tin-plated surface for excellent conductivity and corrosion resistance.
• Flared barrel entry simplifies insertion of fine-stranded conductors.
• Conforms to DIN 46228 Part 1 for consistent dimensions and performance.
• Pack of 100 pieces for convenient stocking.

Specifications

• Wire cross-section: 16 mm²
• Material: Electrolytic copper, tin-plated
• Total length: 20 mm
• Barrel length: 12 mm
• Inner diameter (barrel): 5.3 mm
• Outer diameter (barrel): 6.2 mm
• Connection method: Crimp
• Conductor type: Fine-stranded
• Standard: DIN 46228 Part 1
• Quantity: 100 pieces

Tips

Use a crimping tool with a 16 mm² die to achieve a secure, gas-tight connection. Ensure the conductor is fully inserted into the barrel before crimping.
