Cimco 187439 ακροδέκτης 6 mm² αμόνωτος επικασσιτερωμένος 250 τεμ.

For secure terminations on 6 mm² stranded conductors, this Cimco wire end ferrule offers a tin-plated electrolytic copper construction with a 12 mm total length and 3.5 mm inner diameter, meeting DIN 46228 Part 1 for reliable crimp connections.

Overview

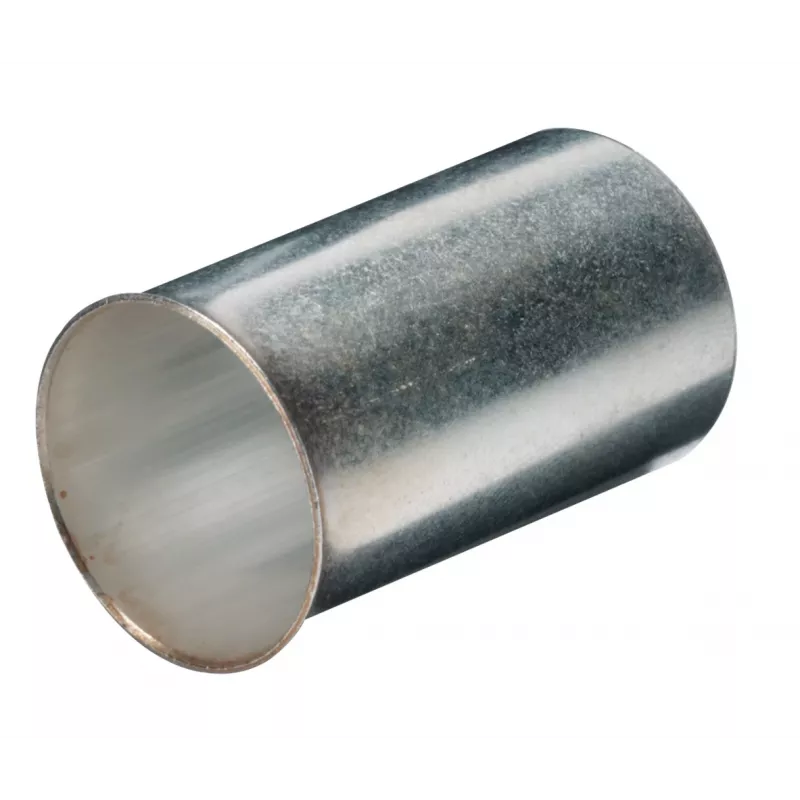

The Cimco 187439 is an uninsulated wire end ferrule designed for crimping onto stranded copper wires with a cross-section of 6 mm². Made from electrolytic copper (E-Cu) and finished with a galvanic tin plating, it provides excellent conductivity and corrosion resistance. The ferrule is supplied in a pack of 250 pieces, making it suitable for industrial and panel-building applications where consistent, high-quality terminations are required.

What stands out

• Tin-plated electrolytic copper for low contact resistance and long-term reliability
• Conforms to DIN 46228 Part 1 for dimensional and material standards
• Uninsulated design allows for compact connections in tight spaces
• Supports a wide temperature range from -40°C to +105°C
• Rated for voltages up to 600 V

Technical details

• Wire cross-section: 6 mm²
• Insulation: Uninsulated
• Material: Electrolytic copper (E-Cu)
• Plating: Tin (galvanic)
• Total length (L1): 12 mm
• Inner diameter (d1): 3.5 mm
• Outer diameter (d2): 4.5 mm
• Temperature range: -40°C to +105°C
• Voltage rating: Up to 600 V
• Connection method: Crimp
• Pack quantity: 250 pieces

Our verdict

A dependable choice for professionals needing consistent, standards-compliant ferrules for 6 mm² stranded wire, with the added benefit of tin plating for enhanced durability.
