Cimco 187305 Ακροδέκτης 6 mm² ημιαπομονωμένος κίτρινο 100 τεμ.

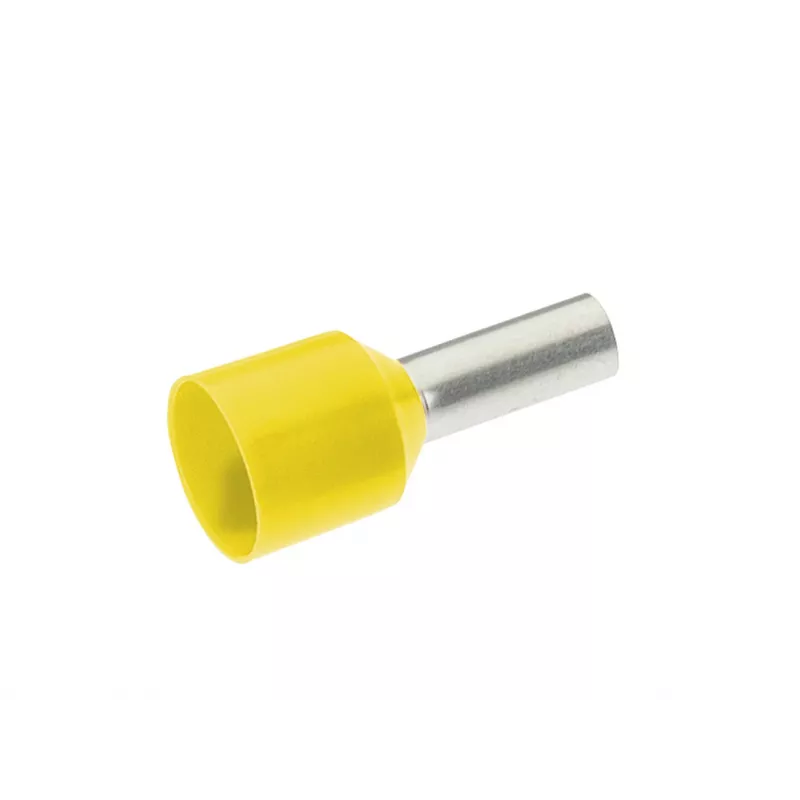

The Cimco 187305 is a partially insulated wire end ferrule for 6 mm² fine-stranded conductors, supplied in a pack of 100. Its funnel-shaped entry simplifies insertion of stranded wires, while the tin-plated electrolytic copper sleeve ensures reliable crimping and corrosion resistance. The yellow polypropylene insulation provides a colour-coded identification per DIN 46228 Part 4 and offers strain relief for the conductor insulation.

Highlights

• For 6 mm² fine-stranded conductors
• Partially insulated with yellow polypropylene sleeve
• Tin-plated electrolytic copper for low contact resistance
• Funnel-shaped entry for easy wire insertion
• Pack of 100 pieces

In daily use

These ferrules are suited for control cabinet wiring, switchgear construction, and electrical installations where fine-stranded conductors must be terminated in screw or spring clamp terminals. The partial insulation protects the conductor insulation from damage while allowing a compact crimp. The yellow colour corresponds to the 6 mm² cross-section, enabling quick visual identification.

Full specifications

• Product type: Wire end ferrule
• Wire cross-section: 6 mm²
• Insulation type: Partially insulated
• Insulation colour: Yellow
• Pack quantity: 100 pieces
• Ferrule material: Electrolytic copper
• Surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Standard compliance: DIN 46228 Part 4
• Conductor compatibility: Fine-stranded conductors
• Temperature resistance: -40°C to +105°C
• Voltage rating (max): 600 V
• Entry type: Funnel-shaped (flared)
• Application: Electrical installations, control cabinet wiring, switchgear construction

Final note

A dependable choice for professional electricians needing consistent, colour-coded terminations for 6 mm² conductors.
