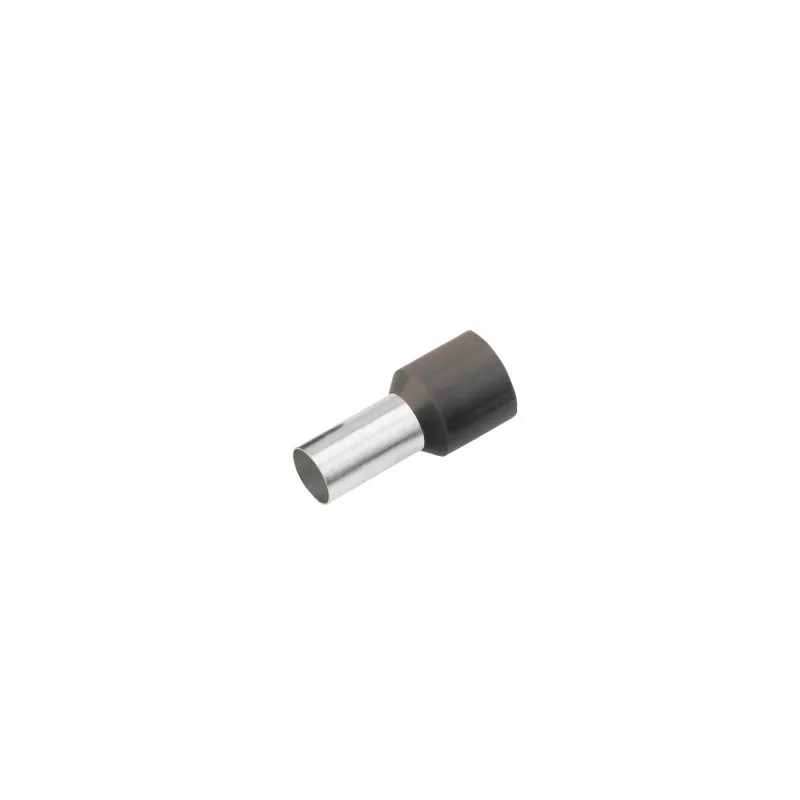

Cimco 187228 ακροδέκτης 6 mm² μερικώς μονωμένος μαύρος 100 τεμ.

Electricians and panel builders terminating stranded copper conductors will find the Cimco 187228 wire end ferrule an everyday essential. Each ferrule accepts a 6 mm² conductor and is partially insulated with a black polypropylene collar, providing reliable protection against fraying while keeping the connection compact.

Key specifications

• Nominal cross-section: 6 mm²
• Insulation type: partially insulated
• Colour: black
• Pack quantity: 100 pieces
• Material: electrolytic copper, tin-plated
• Insulation material: polypropylene (PP)
• Metal sleeve length: 12 mm
• Overall length: 18 mm
• Temperature range: -40 °C to +105 °C
• Max. voltage: 600 V (UL/CSA)
• Standard compliance: DIN 46228 Part 4

Why choose it

The tin-plated copper construction ensures high conductivity and corrosion resistance, while the polypropylene insulation provides a secure grip and strain relief. The black colour coding allows quick identification of the 6 mm² size on the job.

Ideal use cases

• Terminating stranded wires in control cabinets and distribution boards
• Preparing conductors for screw, spring, or push-in terminal connections
• Industrial machinery and building installation wiring

Good to know

These ferrules comply with DIN 46228 Part 4 and are rated for 600 V according to UL/CSA. The insulation is flame-retardant to UL 94 V-2.
