Cimco 187009 Ακροδέκτης 1 mm² ημιαπομονωμένος κόκκινο 100 τεμ.

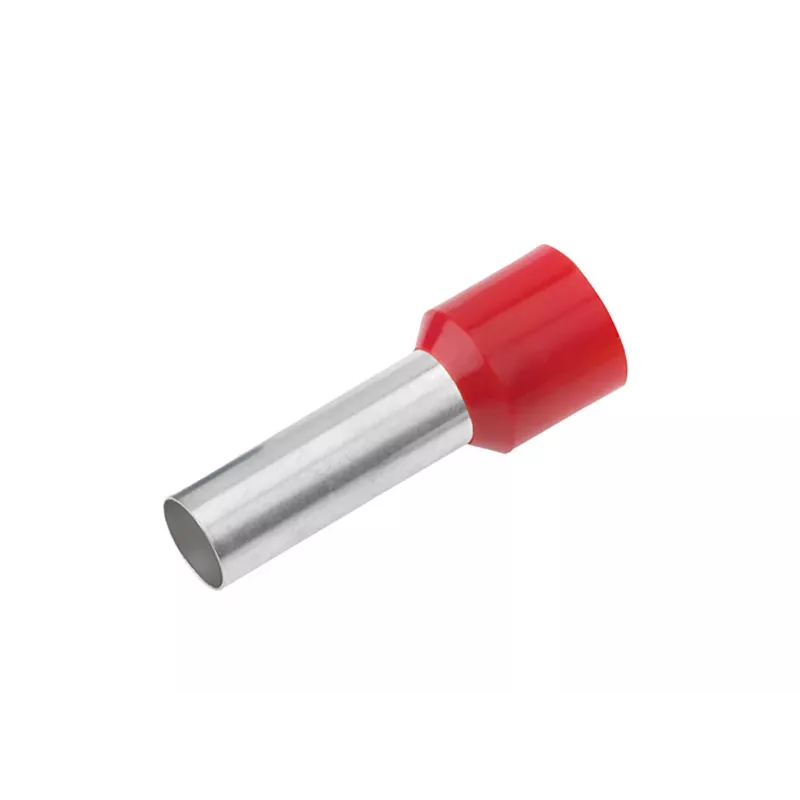

Wire end ferrule for reliable termination of fine-stranded conductors, featuring a 1 mm² cross-section and partial insulation in red for easy identification. The tin-plated electrolytic copper sleeve ensures excellent conductivity and corrosion resistance, while the polypropylene collar provides secure insulation and strain relief.

Advantages

Halogen-free insulation material supports safe use in enclosed spaces. The tin-plated surface offers low contact resistance and protects against oxidation. Color-coded collar enables quick visual identification of conductor size. Compliant with DIN 46228 Part 4 for consistent quality and compatibility.

Suitable for

• Terminating fine-stranded copper conductors in control cabinets
• Industrial automation and electrical installation
• Applications requiring reliable, vibration-resistant connections
• Use with crimping tools designed for wire end ferrules

Key specifications

• Conductor cross-section: 1 mm²
• Insulation type: partially insulated
• Insulation color: red
• Ferrule material: electrolytic copper (E-Cu), tin-plated
• Insulation material: polypropylene (PP)
• Overall length: 14 mm
• Metal tube length: 8 mm
• Inner diameter: 1.5 mm
• Outer diameter: 1.8 mm
• Insulation collar diameter: 3.0 mm
• Temperature range: -40°C to +105°C
• Voltage rating: up to 600 V
• Halogen-free: yes
• Flammability rating: UL 94 V-2
• Pack quantity: 100 pieces

Recommendations

For best results, use a crimping tool with a suitable die for 1 mm² wire end ferrules. Ensure the conductor is fully inserted into the metal tube before crimping to achieve a gas-tight connection.
