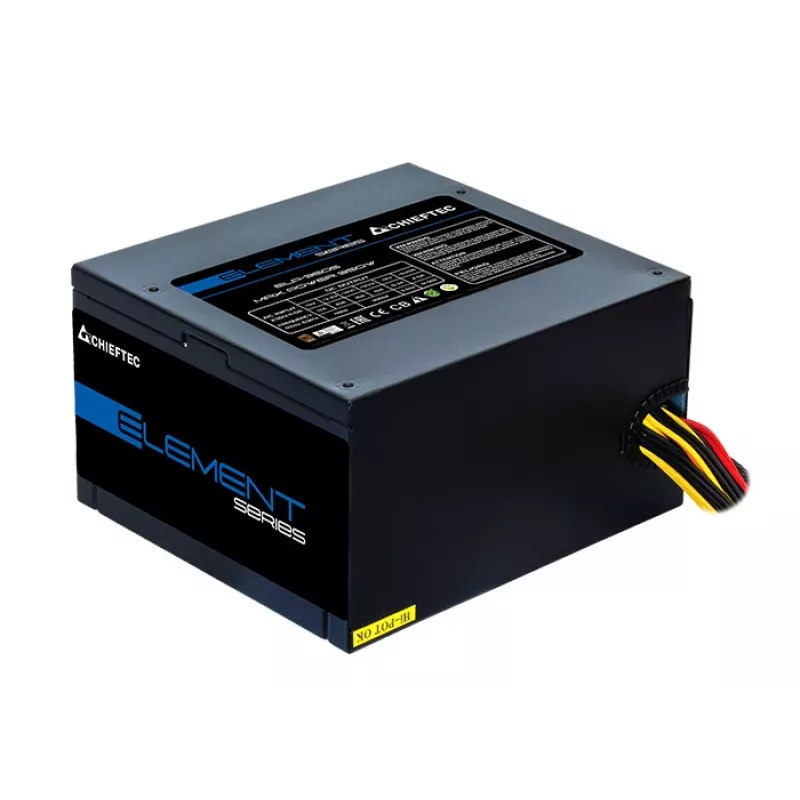

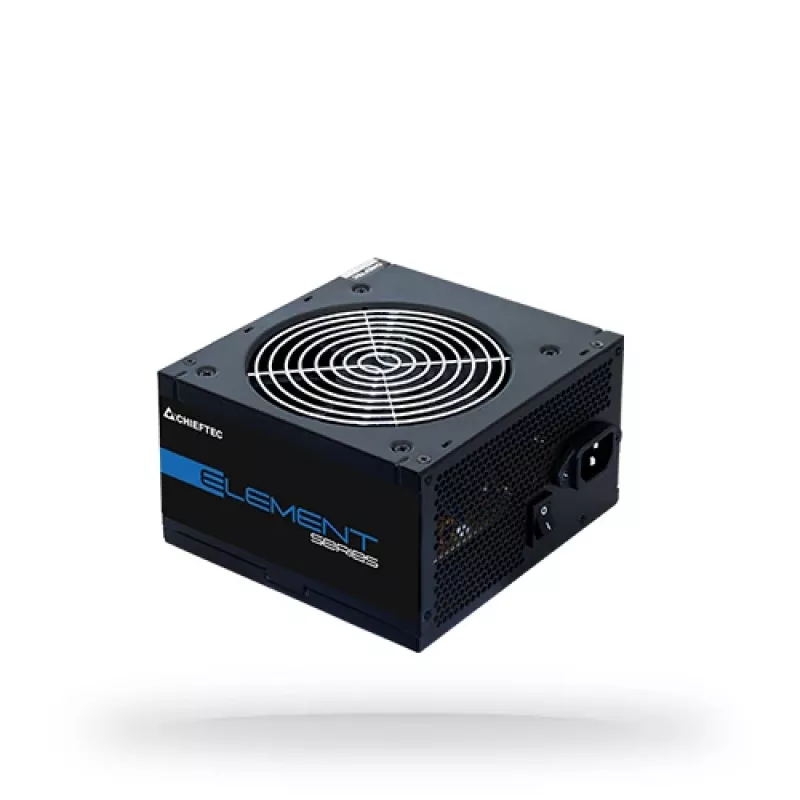

Chieftec ELP-600S Τροφοδοτικό 600 W 20+4-πολικό ATX PS/2 Μαύρο

The Chieftec ELP-600S 600 W power supply unit is a non-modular PSU designed for desktop PCs and small servers. It delivers up to 600 W total power, features a 20+4 pin ATX motherboard connector, an integrated 120 mm fan for cooling, and meets 80 PLUS Bronze efficiency (approximately 85% at 230 V). The unit has a compact black housing (140 mm × 150 mm × 87 mm) and comes with long native cables and a power cord in retail packaging.

Advantages

The ELP-600S provides stable 600 W output with 80 PLUS Bronze efficiency to reduce power loss and heat. Its 120 mm quiet fan ensures effective cooling with low noise. The compact dimensions and standard 20+4 pin ATX connector make it compatible with a wide range of PC cases and motherboards. The supply ships with long fixed cables and a retail box for easy installation and storage.

Suitable for

• Home and office desktop computers
• Small servers and entry-level workstations
• System builds requiring a reliable non-modular 600 W PSU
• Upgrades where 80 PLUS Bronze efficiency is preferred

Key specifications

• Total power: 600 W
• Efficiency: 85% (80 PLUS Bronze, measured at 230 V)
• Motherboard connector: 20+4 pin ATX
• AC input: 200–240 V, 47–63 Hz
• Fan diameter: 120 mm
• Colour: Black
• Dimensions (W × D × H): 140 × 150 × 87 mm

How to use

Install the Chieftec ELP-600S into a compatible PC case using the standard PSU mounting points. Connect the 20+4 pin ATX cable to the motherboard and attach the remaining fixed cables to drives and peripherals as required. Ensure the AC input voltage matches 200–240 V and connect the supplied power cord. After installation, power on the system and verify stable operation and proper fan cooling.

Recommendations

For reliable performance, place the PSU so that the 120 mm fan has unobstructed airflow. Use within the specified AC input range (200–240 V) and avoid environments with excessive dust or heat. Choose appropriate system components so total power draw stays below the 600 W rating to maintain efficiency and longevity.
