CBF Θερμοσυστελλόμενος προστατευτικός σύνδεσμος οπτικών ινών 45mm συσκευασία 100 τεμ.

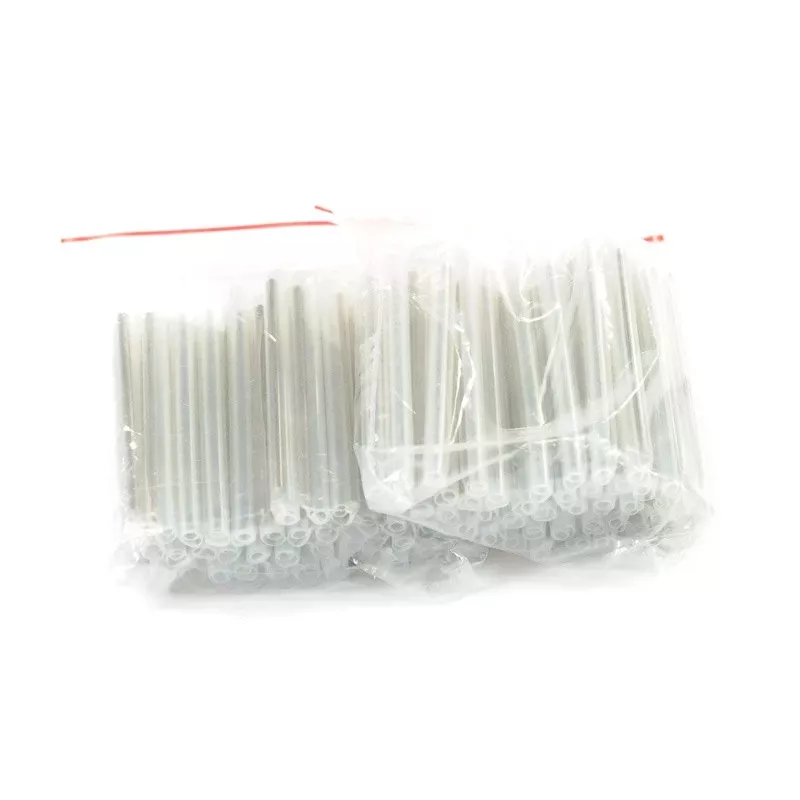

The CBF Heat Shrink Fiber Optic Splice Protector is designed for reliable protection of fusion splices in fiber optic networks. Each pack contains 100 pieces of 45mm long sleeves, ensuring consistent performance for both single-mode and multi-mode fibers.

Advantages

These splice protectors offer excellent mechanical and environmental protection, including resistance to moisture, dust, and vibration. The transparent polyolefin sleeve allows easy visual inspection of the splice, while the stainless steel reinforcement rod provides strength and stability. With a shrink ratio of 2:1 and a low shrink temperature range of 90°C to 120°C, installation is quick and efficient.

Suitable for

• Fiber optic fusion splicing in telecommunications, data centers, and FTTH networks
• Protecting splice points in distribution boxes, terminal boxes, and splice trays
• Field installations and repair work requiring reliable splice protection

Key specifications

• Length: 45 mm
• Quantity per pack: 100 pieces
• Outer material: Polyolefin
• Reinforcement rod: Stainless steel (SUS304), 1.0 mm diameter
• Outer diameter before shrinking: 3.0 mm
• Inner diameter before shrinking: 1.5 mm
• Shrink ratio: 2:1
• Shrink temperature: 90°C - 120°C
• Operating temperature: -40°C to +85°C
• Dielectric strength: >15 kV/mm
• Tensile strength: >18 MPa
• Color: Transparent
• RoHS compliant

Recommendations

For optimal results, use with a compatible fusion splicer and follow standard splicing procedures. Store in a cool, dry place away from direct sunlight.
