Canyon DS-5 USB 2.0 Type-C Γκρι Αναγνώστης καρτών SD 60 Hz

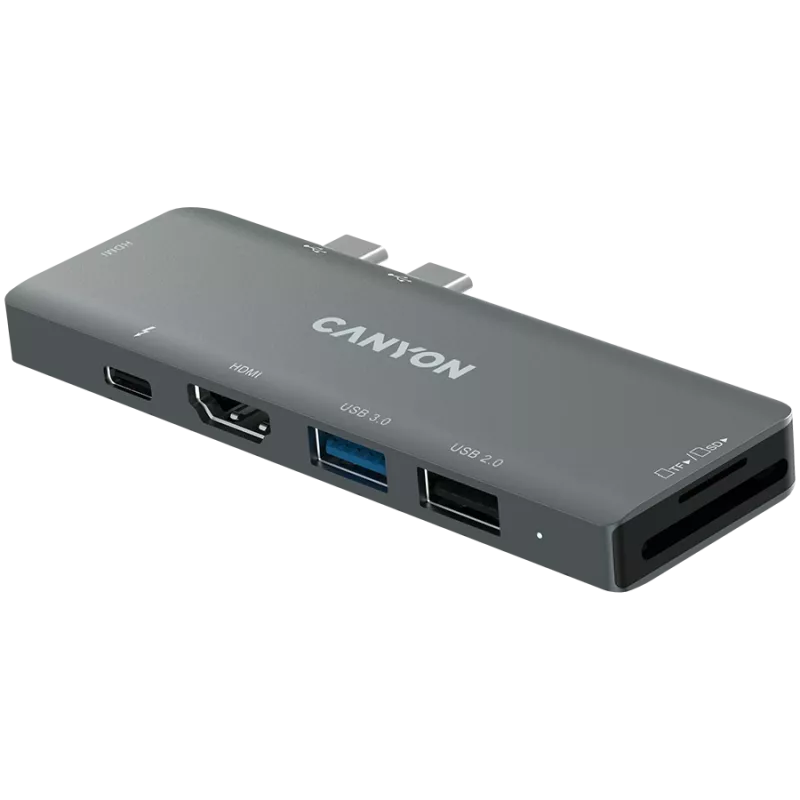

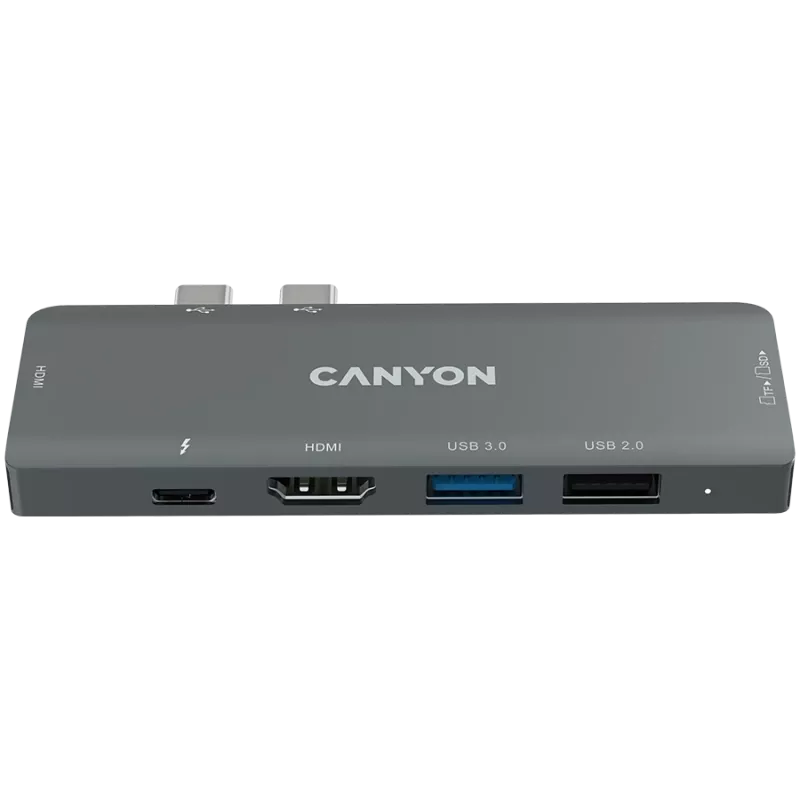

The Canyon DS-5 USB 2.0 Type-C grey hub expands a USB‑C MacBook with seven interfaces in an aluminum-style enclosure. It integrates two HDMI outputs, USB‑A ports, SD and TF card readers and a USB‑C power input to enable charging. The hub is plug-and-play, supports hot-swap connection switching and is designed to match Apple aesthetics while remaining compatible with current USB‑C devices.

Advantages

This compact hub provides simultaneous connection of two monitors via two HDMI ports (4K at 30 Hz or Full HD 1080p at 60 Hz), a USB 3.0 Type‑A port with data rates up to 5 Gbps, a USB 2.0 port up to 480 Mbps, and built‑in SD and TF card readers for direct media access. USB‑C power pass‑through enables charging from an external adapter while other ports remain active. No drivers are required for use.

Suitable for

• Connecting two external monitors to a USB‑C MacBook
• Transferring photos and media from SD or TF cards
• Connecting peripherals such as mouse, keyboard or external drives via USB‑A
• Charging the laptop through USB‑C power input while using other ports

Key specifications

• Brand: CANYON, Model: DS-5 (CNS-TDS05B)
• Interfaces: 2× HDMI, 1× USB 3.0 Type‑A, 1× USB 2.0, 1× USB‑C (power pass‑through), SD and TF card readers
• Video support: HDMI up to 4K@30Hz or 1080p@60Hz
• Data rates: USB 3.0 up to 5 Gbps, USB 2.0 up to 480 Mbps
• Dimensions: 42 mm × 104 mm × 11 mm
• Weight: 0.046 kg
• Colour: Grey
• EAN: 5291485007508

How to use

Connect the hub to a USB‑C port on your MacBook and attach HDMI cables to the hub for external displays. Insert SD or TF cards directly into the respective slots to access files. Plug USB devices into the Type‑A ports. If charging is needed, connect a USB‑C power adapter to the hub’s USB‑C port; the hub supports power pass‑through while other ports remain active. The device is plug‑and‑play and does not require additional software.

Recommendations

For optimal video output, use HDMI cables rated for the target resolution and set display settings on your MacBook to match the connected monitors. Avoid inserting or removing cards or cables during active file transfers to prevent data loss.
