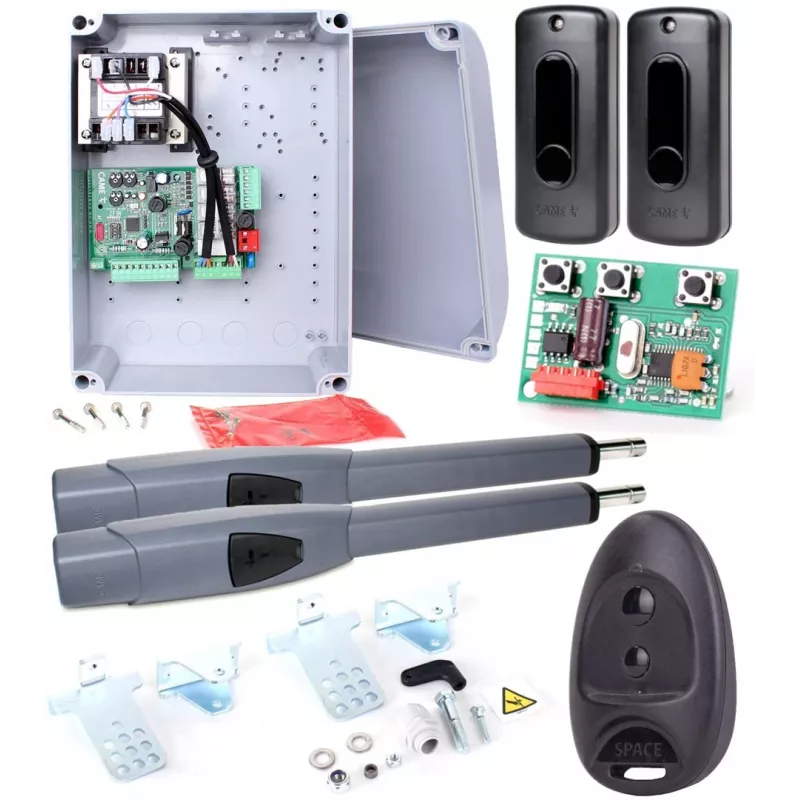

CAME ATS 50AGM 230V Long Space Σετ για Δίφυλλες Πύλες έως 10 m

The CAME ATS 50AGM 230V Long Space Set is a mechanical drive system designed for double-swing gates with leaves up to 5 m in length. It features two limit switches as standard and is suitable for intensive use.

Key features

• Maximum gate leaf weight: 400-1000 kg
• Power supply: 230V, motor 230V
• Mechanical gate drive
• Maximum gate leaf length: 5 m
• 2 limit switches as standard
• Designed for intensive operation
• Universal – fits gates with steel and clinker pillars, even when the gate hinge is mounted 20 cm from the pillar edge
• Protected and resistant to all weather conditions – thanks to two limit switches built into the actuator, resistant to water and frost (IP67)
• Traction force 3000N and screw extension up to 50 cm in the version for 5m leaf

Specifications

• Brand: CAME
• Model: ATS50AGM
• Max. leaf width in relation to its weight: 5m up to 400kg, 4m up to 500kg, 3m up to 600kg, 2.5m up to 800kg, 2m up to 1000kg
• Protection degree: IP44
• Power supply: 230V, 50/60Hz
• Motor power supply: 230V DC
• Motor current consumption: 1A max.
• Maximum motor power: 250W
• Duty cycle: intensive operation
• Traction force: 400/3000N
• Pedestrian gate function: No
• Motor thermal protection: 150 degrees Celsius
• Opening time to 90 degrees: from 15 to 30 seconds
• Operating temperature: from -20 to +55 degrees Celsius
