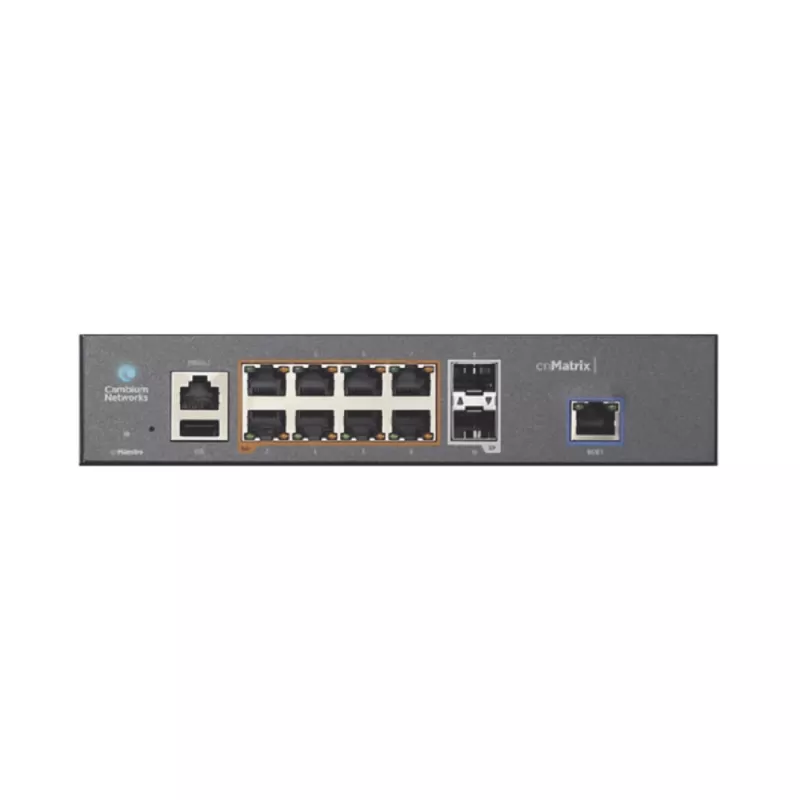

Cambium Networks cnMatrix EX1010-P Managed L2/L3 Gigabit Ethernet 1U

The Cambium Networks cnMatrix EX1010-P Managed L2/L3 Gigabit Ethernet 1U is a rack-mountable managed switch designed for 10/100/1000 Mbps connectivity with integrated Power over Ethernet (PoE) support. It provides enterprise-grade switching functionality in a 1U form factor and is intended for deployment in medium to large network infrastructures requiring reliable wired access and centralized management.

Advantages

The EX1010-P delivers managed L2/L3 features, Gigabit RJ-45 ports, and PoE to power endpoint devices directly from the switch. Its 1U design fits standard server racks, and the device supports widely used networking standards for interoperability and network control. Centralized cloud management enables remote configuration and monitoring.

Suitable for

• Office networks requiring PoE for IP phones, wireless access points, or cameras
• Wired access layer in campus or branch networks
• Rack-mounted deployments in data closets or wiring cabinets

Key specifications

• Model: Cambium Networks cnMatrix EX1010-P (MX-EX1010PXA-E)
• Ports: 8 x Gigabit Ethernet (10/100/1000) RJ-45
• Switch type: Managed L2/L3
• PoE: Supported (integrated Power over Ethernet)
• Form factor: 1U rack-mount
• Standards: IEEE 802.1s, 802.3x, 802.3u, 802.3ad, 802.3ac, 802.3ab, 802.3, 802.1x, 802.1w, 802.1p, 802.1ab, 802.1Q, 802.1D
• Colour: Black
• Weight: 1.99 kg

How to use

Install the switch into a standard 19-inch rack using the 1U mounting kit. Connect power and link the Gigabit RJ-45 ports to upstream routers, servers, or endpoint devices. Use the cloud management platform or the switch’s management interface to configure VLANs, L2/L3 routing, PoE settings, security policies, and monitoring. Verify port status and PoE power allocation after initial setup.

Recommendations

Deploy the EX1010-P in a climate-controlled rack space with proper ventilation. Plan VLANs and PoE budget according to the total connected devices. Regularly update firmware via the manufacturer’s management tools and monitor switch health through the cloud console for stable operation.
