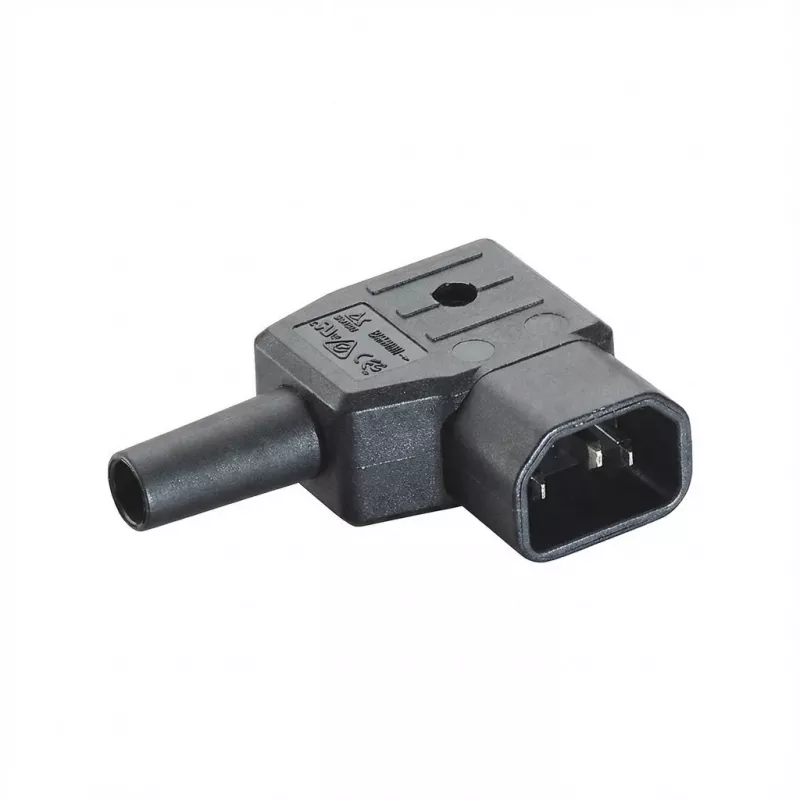

C14 Βύσμα τροφοδοσίας Bachmann 915.172 μαύρο

For cables up to 3G 1.00 mm², thermoplastic version with earthing contact C14 for cable junction. The product includes a screw terminal, kink protection and strain relief, with the cable exiting on the right-hand side.

Advantages

The thermoplastic housing provides durable insulation for cable junctions up to 3G 1.00 mm². An integrated earthing contact C14 ensures reliable grounding. Built-in kink protection and strain relief reduce mechanical stress at the cable entry, and the screw terminal enables secure electrical connections. Right-hand cable exit supports standardized installation layouts.

Key specifications

• Suitable cable size: up to 3G 1.00 mm²
• Housing material: thermoplastic
• Earthing contact: C14 for cable junction
• Connection type: screw terminal
• Mechanical features: kink protection and strain relief
• Cable exit orientation: right-hand side

How to use

Strip the cable to the required length, insert conductors into the screw terminal and tighten screws to the specified torque. Ensure the earthing conductor is connected to the C14 contact. Position the cable so that kink protection and strain relief components support the entry point, then secure the housing according to the installation instructions. Confirm the cable exits on the right-hand side as required by the installation layout.

Recommendations

Use this component with cables not exceeding 3G 1.00 mm² and follow applicable electrical codes. Verify correct earthing connection and proper tightening of screw terminals to maintain safety and reliable performance.
