Busch-Jaeger Στοιχείο Χειρισμού Λευκό SB-F-12.0.11-84 (2CKA006220A0887)

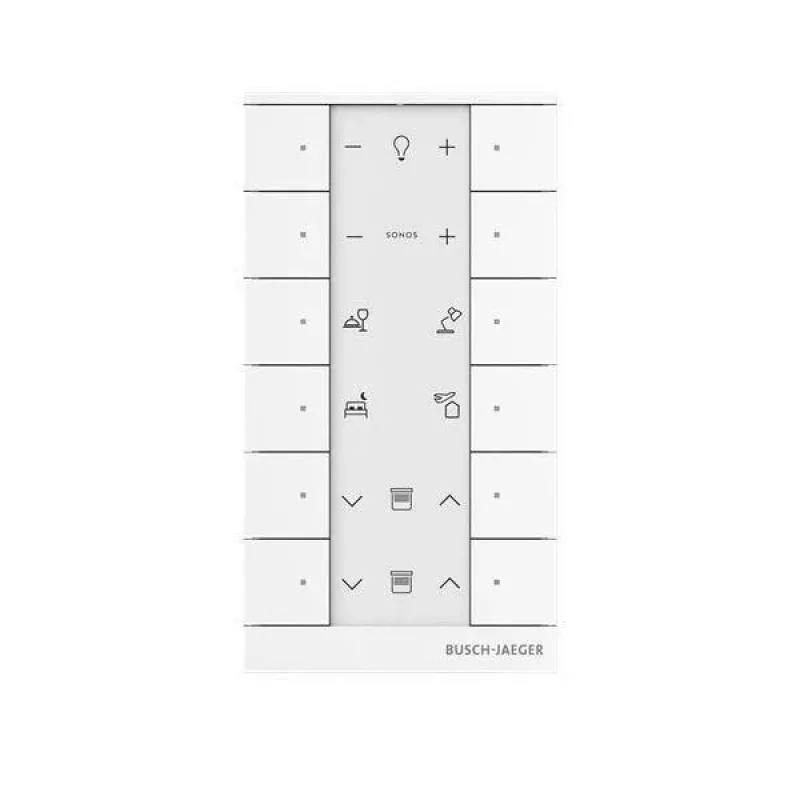

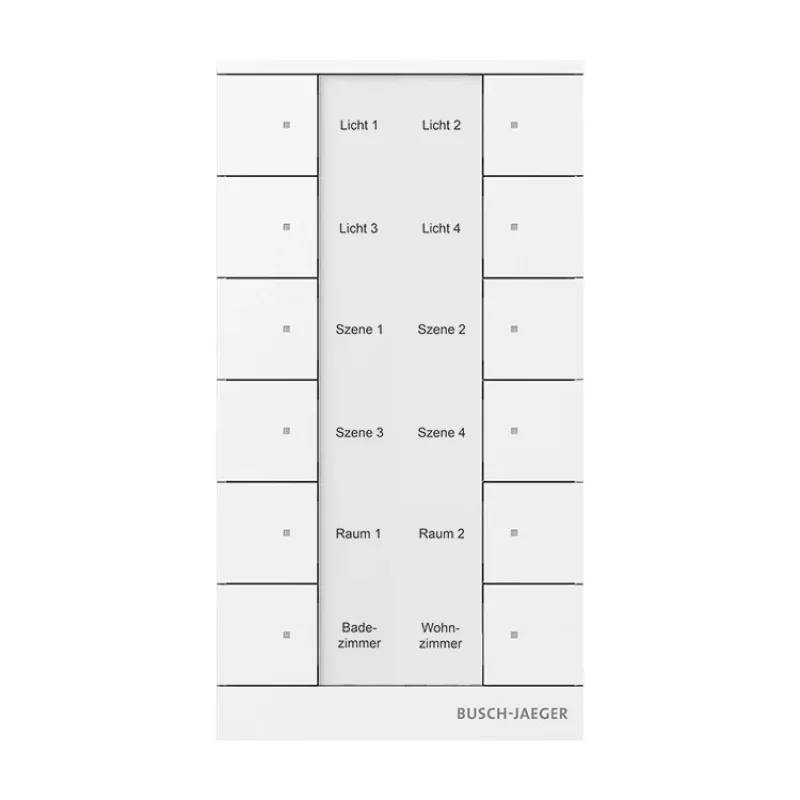

In a Busch-free@home smart home installation, wall-mounted control elements bridge the gap between the bus system and the user. This flush-mounted 1-gang control element from Busch-Jaeger provides a tactile interface for switching, dimming, blind control, scene recall, and value transmission, all in a clean white finish.

Who is it for

Electricians and system integrators installing Busch-free@home systems in residential or commercial buildings, as well as homeowners who want a reliable, wired smart home control point that matches standard switch ranges.

Main features

• 1-gang (1-fold) control element for Busch-free@home bus
• Functions: switching, dimming, blind control, scene recall, value transmitter
• Integrated RGB LED status indicator
• Powered directly via the free@home bus, no separate supply needed
• Flush-mounted design, fits standard 1-gang cover frames
• Colour: Studio White
• Material: Thermoplastic (PC)
• Configured via free@home System Access Point
• Protection rating: IP20
• Operating temperature: -5 to +45 °C
• Relative humidity: 5 - 95 % (non-condensing)
• Visible surface dimensions: 71 x 71 mm
• Installation depth: approx. 30 mm

Specifications

• Brand: Busch-Jaeger
• Model: 2CKA006220A0887
• MPN: 2CKA006220A0887
• EAN: 4011395314784
• System compatibility: Busch-free@home
• Control points: 1-gang
• Bus protocol: free@home bus
• Power supply: Via free@home bus
• Status indicator: Integrated RGB LED
• Configuration method: free@home System Access Point
• Required accessories: Busch-Jaeger 1-gang cover frame

Tips

Pair this control element with a matching Busch-Jaeger cover frame in the same colour family for a seamless look. For multi-gang installations, combine multiple elements with appropriate frames.
