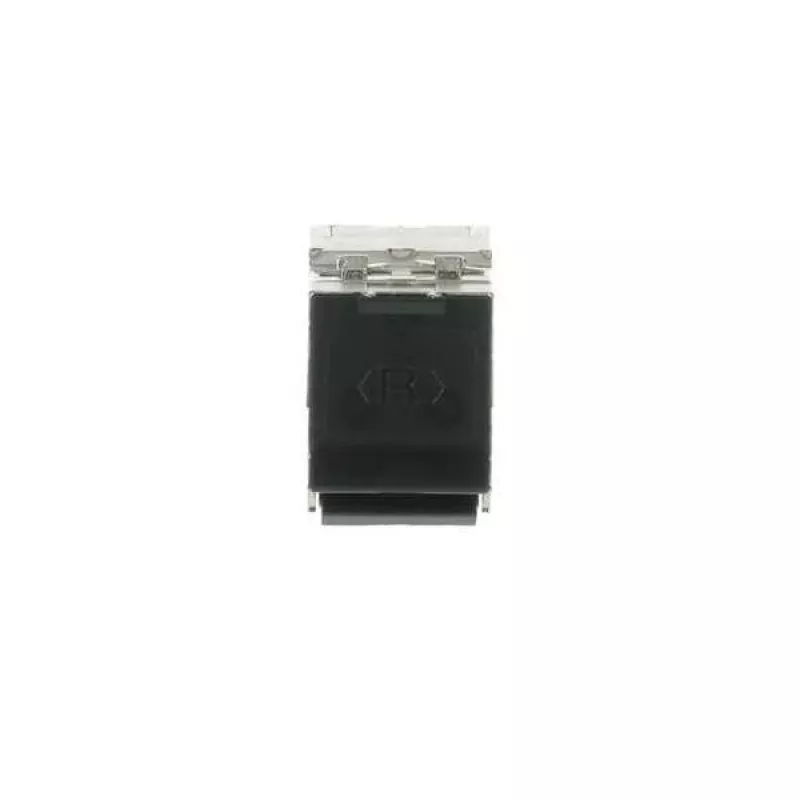

BUSCH-JAEGER Modular Jack Cat.6a iso 25/10G Μονάδα (2CKA000230A0473)

The BUSCH-JAEGER Modular Jack Cat.6a iso 25/10G insert stands out with its support for 25 Gigabit Ethernet, making it a future-proof choice for high-speed networking in structured cabling systems. This shielded RJ45 keystone module is engineered for reliable performance in demanding environments.

Highlights

• Supports 10GBASE-T and 25GBASE-T for short distances
• Tool-less IDC termination for quick installation
• Die-cast zinc shielding for superior EMI protection
• Snap-in keystone mounting for Busch-Jaeger frames
• PoE, PoE+, and 4PPoE compatible

In daily use

Designed for both solid and stranded wires, this jack accepts AWG 24-22 solid and AWG 26-22 stranded conductors. The color-coded T568A/B wiring scheme simplifies termination, while gold-plated contacts ensure long-term signal integrity with over 750 mating cycles.

Full specifications

• Data Category: Cat.6A (Class EA)
• Shielding Type: Shielded (ISO)
• Connector Type: RJ45
• Number of Ports: 1
• Termination Method: Tool-less IDC
• Wire Gauge (Solid): AWG 24-22
• Wire Gauge (Stranded): AWG 26-22
• Mounting Standard: Keystone
• Housing Material: Die-cast zinc, plastic
• Contact Plating: Gold
• Mating Cycles: >750
• Compatibility: Busch-Jaeger data outlets and frames

Final note

This insert is a robust solution for high-performance network installations, delivering consistent speed and reliability.
