BUSCH-JAEGER Ενεργοποιητής φωτισμού 1 απλού χωνευτός 6701-101 (6701-101)

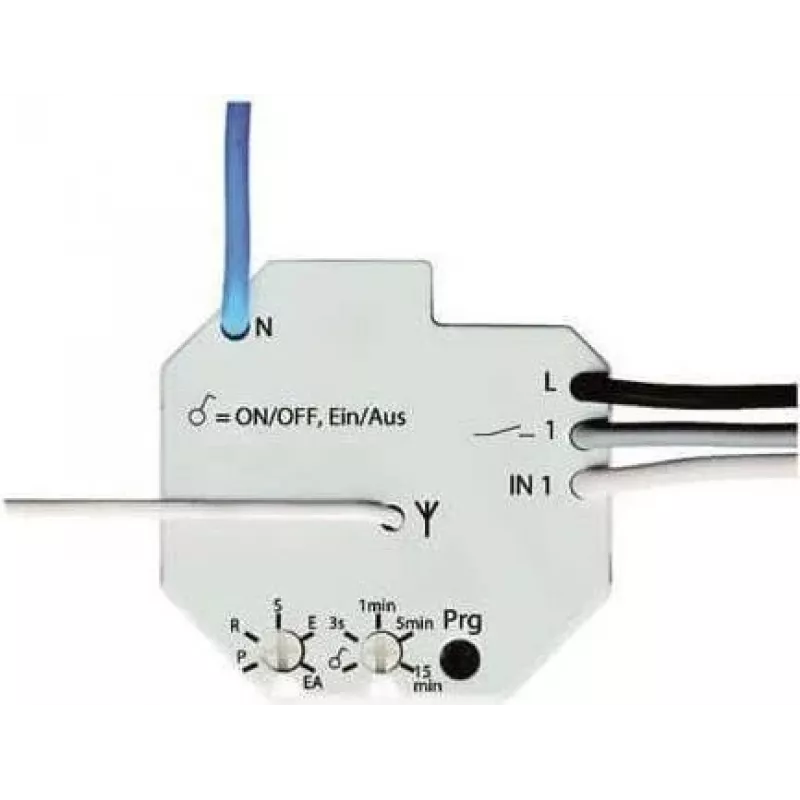

The BUSCH-JAEGER Switch Actuator 1-gang Flush-Mounted 6701-101 brings reliable on/off control for lighting and electrical loads into the ABB free@home smart home system. With a robust relay output rated for 2300 W resistive loads, it handles incandescent, halogen, and LED lamps with confidence, all from a compact flush-mounted module that disappears into standard wall boxes.

Advantages

This actuator integrates seamlessly with the free@home wireless bus, eliminating the need for additional wiring. Manual operation directly on the device ensures control even without a smartphone or system connection. Its low standby consumption of under 0.3 W keeps energy costs minimal, while screw terminals provide secure, maintenance-free connections.

Suitable for

• Retrofit projects where existing flush-mounted boxes are available
• Controlling lighting circuits in residential and commercial buildings
• Integrating into ABB free@home smart home installations
• Switching resistive loads up to 2300 W, including heaters and small appliances
• Users who want a manual override option on the device itself

Key specifications

• System: ABB free@home (2.4 GHz wireless)
• Mounting: Flush-mounted (UP)
• Channels: 1 (relay)
• Supply voltage: 230 V AC, 50/60 Hz
• Max. resistive load: 2300 W (10 A)
• Max. incandescent/halogen load: 2300 W
• Max. LED lamp load: 200 W (typical)
• Connection: Screw terminals
• Protection class: IP20
• Operating temperature: -5 to +45 °C

Recommendations

For a clean, future-proof smart home upgrade, pair this actuator with ABB free@home sensors and control elements. Its flush-mounted design keeps installations neat, and the integrated bus coupler simplifies commissioning. Always verify total load per channel to stay within the 10 A rating.
