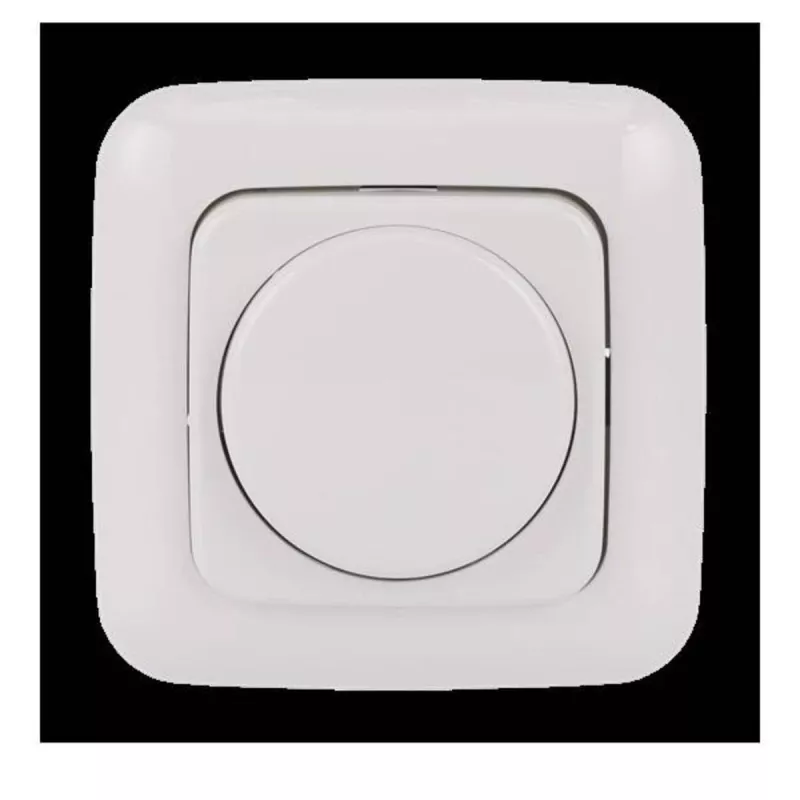

BUSCH-JAEGER BUSCH 6523 UJ-214-102 σετ dimmer LED, RSI (2CKA006512A0348)

For electricians and homeowners upgrading lighting control in residential or commercial spaces, the BUSCH-JAEGER BUSCH 6523 UJ-214-102 LED Dimmer Set provides smooth, flicker-free dimming for a wide range of light sources. The rotary control with push-button switch allows precise brightness adjustment and simple on/off operation, while automatic phase-cut detection handles both leading and trailing edge loads without manual configuration.

Key specifications

• Dimmer type: Universal LED dimmer
• Control type: Rotary with push-button switch
• Dimming method: Automatic phase cut (leading edge / trailing edge)
• Operating voltage: 230 V AC, 50 Hz
• Max. LED load (trailing edge): 200 W
• Max. LED load (leading edge): 100 W
• Min. LED load: 2 W
• Max. incandescent/HV halogen load: 200 W
• Min. incandescent/HV halogen load: 10 W
• Max. LV halogen load (electronic transformer): 200 VA
• Max. LV halogen load (conventional transformer): 200 VA
• Mounting type: Flush-mounted for standard wall boxes
• Protection: Electronic overload, short-circuit, and thermal protection
• Special features: Soft start, memory function, adjustable minimum brightness
• IP rating: IP20

Why choose it

This dimmer set is engineered for compatibility with Busch-Jaeger switch ranges, ensuring a seamless aesthetic integration. The automatic load detection simplifies installation by eliminating the need to set the dimming mode manually, while the memory function recalls the last brightness level for added convenience.

Ideal use cases

• Residential lighting control for LED, halogen, and incandescent lamps
• Commercial spaces requiring reliable dimming for diverse lighting loads
• Renovation projects where flush-mounted dimmers are preferred

Good to know

The dimmer includes electronic overload, short-circuit, and thermal protection to safeguard connected loads. Its soft start feature extends lamp life by reducing inrush current during switch-on.
