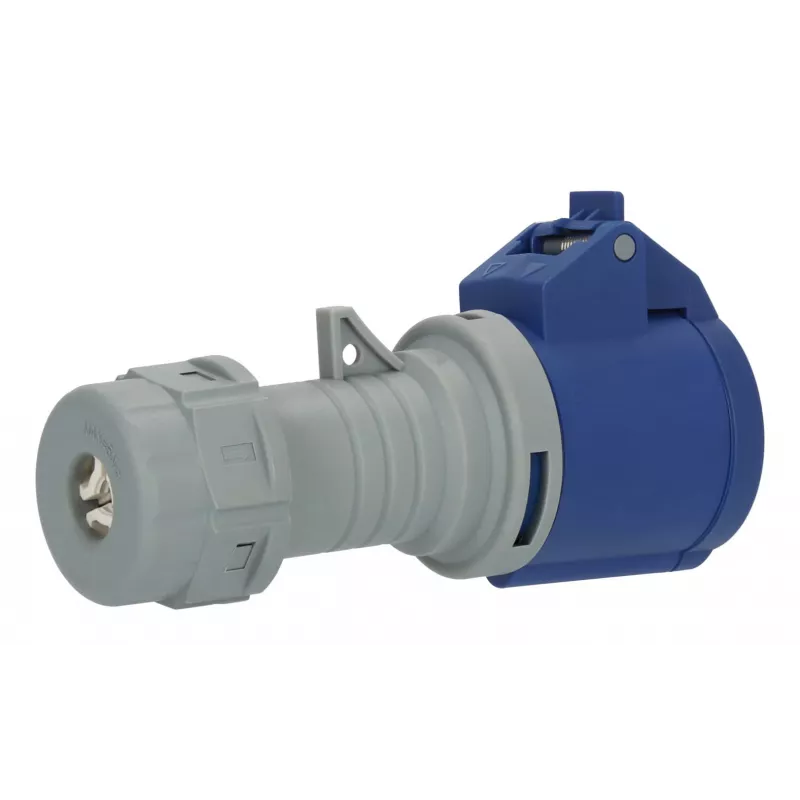

Brennenstuhl Υποδοχή CEE 230 V 16 A IP44 Μπλε 1 τεμ.

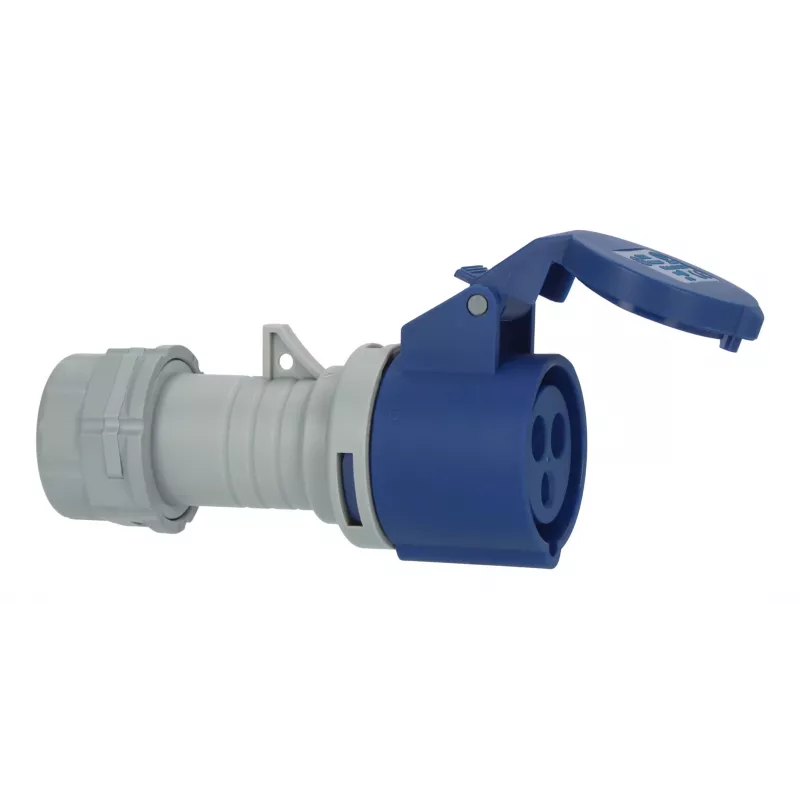

The Brennenstuhl CEE coupler (female) is a robust and reliable connection solution for industrial, outdoor, camping, and construction site applications. Designed to meet IEC 60309 standards, this 3-pole (2P+E) coupler provides a secure and weatherproof connection with IP44 splash-proof protection. The blue housing indicates a 230 V rating, making it ideal for standard single-phase power distribution.

Advantages

High-quality polyamide housing ensures durability and resistance to impact and UV radiation. The integrated strain relief protects the cable from mechanical stress, while screw terminals allow for easy and secure wiring. The 6h earth contact position ensures compatibility with standard CEE plugs.

Suitable for

• Outdoor power distribution
• Industrial machinery and tools
• Camping and caravan electrical hookups
• Construction site power supply

Key specifications

• Connector type: CEE coupler (female)
• Rated voltage: 230 V AC
• Rated current: 16 A
• Number of poles: 3 (2P+E)
• Protection class: IP44
• Colour: Blue
• Housing material: Polyamide (PA)
• Connection method: Screw terminals
• Cable cross-section: 1.5 - 2.5 mm²
• Frequency: 50/60 Hz
• Standard: IEC 60309
• Earth contact position: 6h
• Quantity: 1 piece

Recommendations

For optimal performance, use with a matching CEE plug and ensure proper cable preparation. Always follow local electrical codes and regulations.
