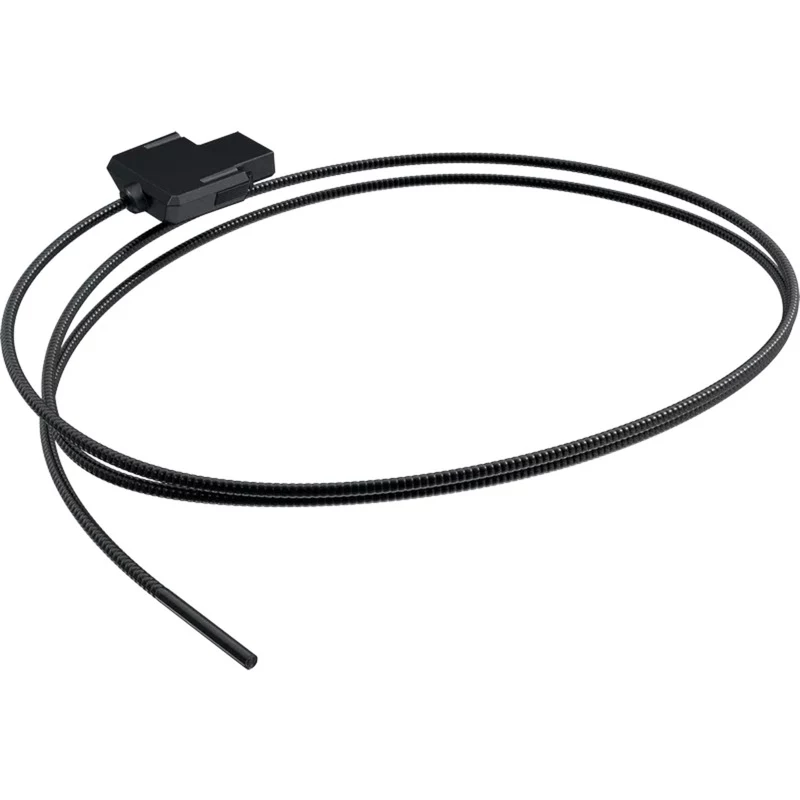

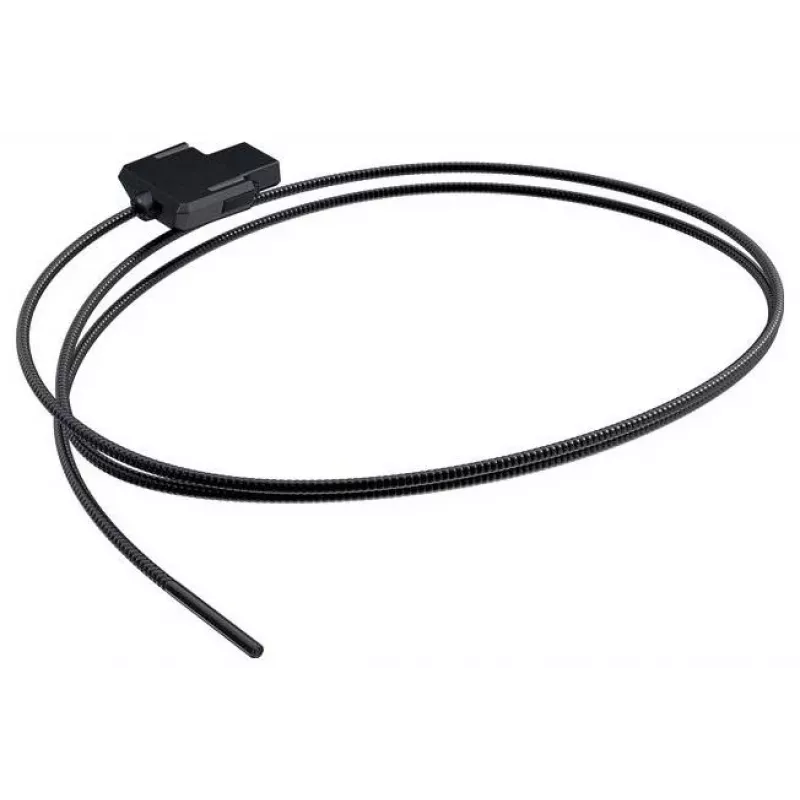

Bosch Μονάδα Imagermodul 3,9 m για κάμερα GIC 12V-4/5 (1600A02Z63)

When inspecting deep pipes or cavities, the built-in camera cable on your Bosch GIC inspection camera may not reach far enough or could be damaged. This 3.9-meter imager module replaces or extends the camera cable, restoring full inspection capability for Bosch GIC 12V-4 and GIC 12V-5 Professional models.

Who is it for

Technicians and maintenance professionals who use Bosch GIC 12V-4 or GIC 12V-5 Professional inspection cameras and need a replacement or longer camera cable for visual inspection tasks.

Main features

• 3.9 m flexible and robust cable for extended reach
• 8.5 mm camera head diameter fits into narrow openings
• Integrated 4 LED lights for clear illumination
• IP67 rated camera head and cable for dust and water resistance
• 75° field of view and 30-80 mm depth of field for detailed imaging

Specifications

• Cable length: 3.9 m
• Camera head diameter: 8.5 mm
• Field of view: 75°
• Depth of field: 30 - 80 mm
• Number of LEDs: 4
• Ingress protection: IP67 (camera head and cable)
• Connector type: Proprietary Bosch GIC
• Cable material: Reinforced plastic/rubber
• Colour: Black/grey

Tips

Ensure the camera head is clean before insertion to maintain image clarity. Avoid bending the cable sharply near the connector to prolong its life.
