Bosch GTS 10 J 25,4 cm 3650 σ.α.λ. 1800 W

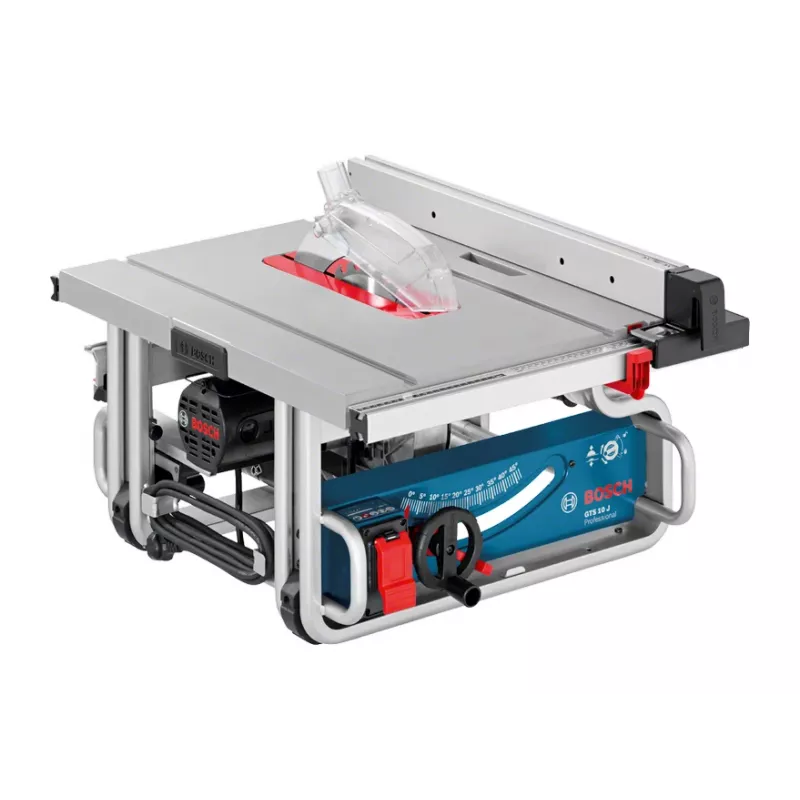

The Bosch GTS 10 J table saw is a stationary power saw designed for precise crosscuts, rip cuts and angled cuts in wood and wood-based panels. It is driven by an 1800 W motor and uses a 254 mm (25.4 cm) diameter blade with a 30 mm bore, delivering up to 3650 RPM at no load. The saw’s compact worktop and stable frame support typical workshop operations while the specified dimensions and weight reflect a balance between portability and on-site stability.

Advantages

The Bosch GTS 10 J combines a high-power motor with a relatively large blade diameter for clean, fast cuts and consistent cutting performance across common woodworking materials. Its design supports straightforward blade installation and consistent rotational speed under load. The tool’s measurable noise level and robust construction help users assess suitable workshop placement and required hearing protection. The saw’s footprint and weight make it transportable for jobsite use while remaining stable during routine cutting tasks.

Suitable for

• Crosscutting and ripping softwood and hardwood boards
• Cutting plywood, MDF and particleboard sheets
• Making angled or bevel cuts for joinery and framing
• Workshop and on-site carpentry tasks requiring a stationary saw

Key specifications

• Motor power: 1800 W
• Blade diameter: 254 mm (25.4 cm)
• No-load speed: up to 3650 RPM
• Blade bore (arbor): 30 mm
• Supply voltage: 230 V AC
• Table dimensions (approx.): width 642 mm, depth 572 mm
• Weight: 26 kg
• Noise level: 116 dB (measured sound pressure level)

How to use

Install an appropriate saw blade for the material and cutting type, ensuring the blade fits the 30 mm arbor and is tightened according to the manufacturer’s torque instructions. Connect the saw to a 230 V AC supply using a suitably rated power cord and ensure the work area is stable and clear of debris. Set the blade height and angle as required, use the rip fence and miter gauge for accurate guiding, and feed material at a steady, controlled rate. Always use appropriate push sticks or push blocks when cutting narrow pieces and allow the blade to reach full speed before contacting the workpiece.

Recommendations

Always use hearing protection due to the saw’s 116 dB noise level. Use appropriate personal protective equipment including eye protection and dust extraction or a vacuum system to reduce airborne dust. Verify electrical supply compatibility and ensure the saw is placed on a stable surface; for prolonged or heavy-duty cutting, consider using a dedicated table or stand and follow Bosch safety instructions provided with the tool.
