BlueOptics Simplex Καλώδιο Patch Οπτικής Ίνας LC/APC-SC/APC Singlemode 2 μέτρα

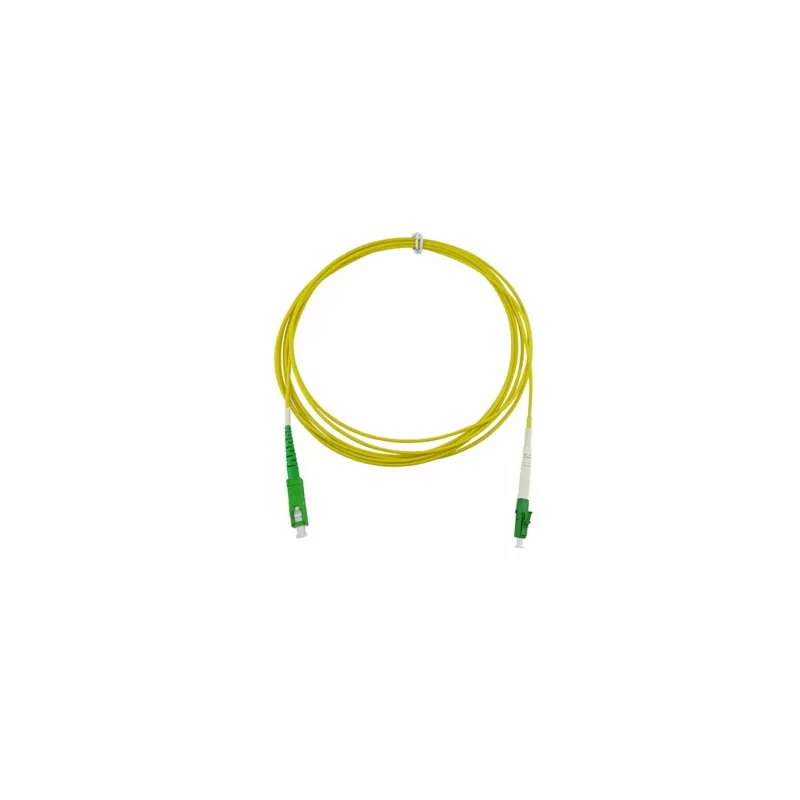

The BlueOptics Simplex Fibre Optic Patch Cable LC/APC-SC/APC Singlemode 2 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Engineered with precision, this cable ensures low insertion loss and high return loss, making it ideal for critical applications in data centers, telecommunications, and FTTx networks.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The 9/125 µm core/cladding diameter and OS2 singlemode fibre support long-distance, high-bandwidth transmissions.

Suitable for

• Data Centers
• Telecommunications networks
• FTTx (Fiber to the x) installations
• Local Area Networks (LAN)
• Storage Area Networks (SAN)

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Singlemode (OS2)
• Fibre Count: Simplex (1 Fibre)
• Connector A: LC/APC
• Connector B: SC/APC
• Cable Length: 2 Metres (6.56 ft)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 60 dB
• Cable Diameter: 3.0 mm
• Polishing Type: APC (Angled Physical Contact)
• Ferrule Material: Ceramic
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10D (30 mm)
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/APC and SC/APC interfaces. Ideal for use in high-density patching environments where space and safety are priorities.
