BlueOptics SFP56 πομποδέκτης 50GBASE-SR 100 μέτρα

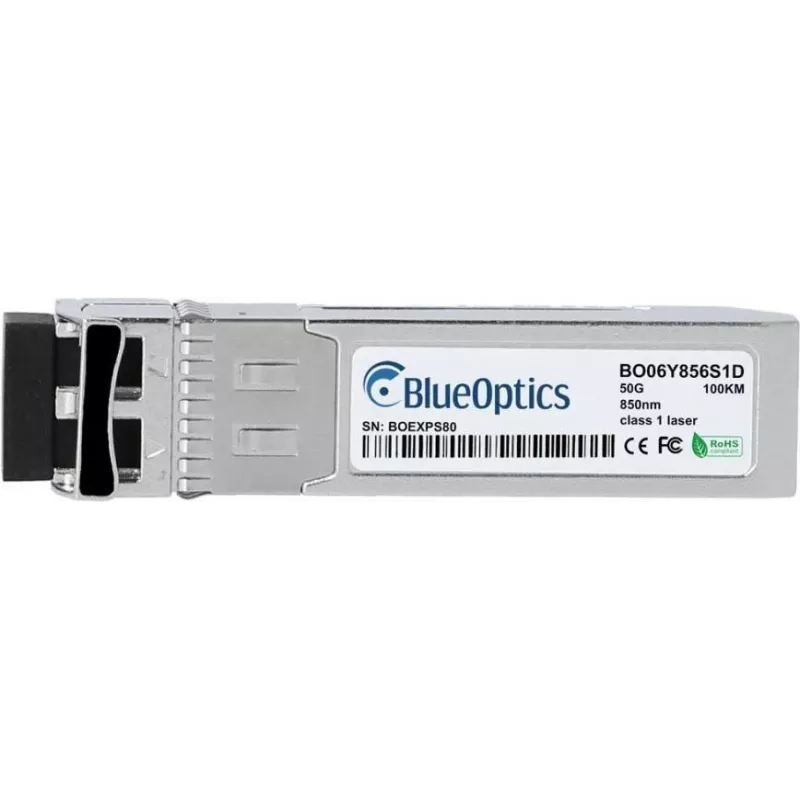

The BlueOptics BO06Y856S1D-BO SFP56 transceiver is a high-performance, hot-pluggable module designed for 50 Gigabit Ethernet (50GbE) applications over multimode fiber. With a reach of up to 100 meters on OM4 fiber, it is ideal for short-range data center interconnects and high-performance computing environments.

Advantages

This transceiver offers exceptional performance with PAM4 modulation, ensuring reliable data transmission at speeds up to 53 Gbps. Its low power consumption (<1.5W) and digital diagnostic monitoring (DDM) provide efficient operation and real-time performance tracking. The SFP56 form factor ensures compatibility with existing SFP+ and SFP28 ports, making it a cost-effective upgrade path.

Suitable for

• Data center interconnects
• High-performance computing (HPC) networks
• 50GbE switch and router connections
• Short-range multimode fiber links

Key specifications

• Form Factor: SFP56
• Data Rate: 50 Gbps (up to 53 Gbps)
• Connector: LC Duplex
• Fiber Type: Multimode (OM3/OM4)
• Wavelength: 850 nm
• Max Distance: 70 m (OM3), 100 m (OM4)
• Modulation: PAM4
• Power Consumption: <1.5W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS

Recommendations

For optimal performance, pair this transceiver with OM4 multimode fiber cables and ensure your network equipment supports SFP56 or SFP28 interfaces. The module is hot-pluggable, allowing for easy installation and replacement without network downtime.
