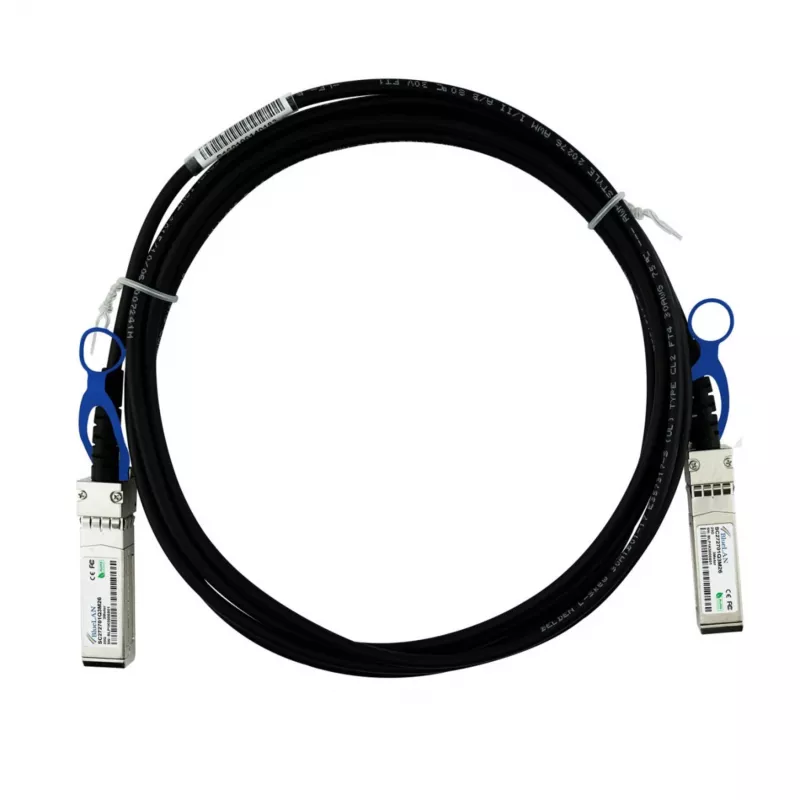

BlueOptics MCP2M00-A002-BL Συμβατό με BlueLAN 25GBASE-CR Παθητικό Καλώδιο SFP28 Direct Attach, 2m, AWG30

The BlueOptics MCP2M00-A002-BL is a high-performance, compatible direct attach cable (DAC) designed for 25 Gigabit Ethernet and InfiniBand networks. This passive SFP28 to SFP28 cable offers a cost-effective, low-power solution for short-range interconnects in data centers and high-speed networking environments. With a length of 2 meters and AWG30 gauge, it ensures reliable signal integrity and compliance with SFP28 MSA standards.

Advantages

This cable provides ultra-low power consumption due to its passive design, eliminating the need for external power sources. It is hot-pluggable and offers seamless compatibility with Mellanox MCP2M00-A002 equipment, ensuring easy integration into existing infrastructure. The copper conductor material guarantees robust performance and durability.

Suitable for

• Data center interconnect applications
• High-speed networking between switches, servers, and storage devices
• 25GBASE-CR compliant Ethernet networks
• InfiniBand environments requiring SFP28 connectivity

Key specifications

• Data Rate: 25 Gbps
• Cable Type: Direct Attach Cable (DAC)
• Cable Standard: 25GBASE-CR
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 2 meters
• Cable Gauge: AWG30
• Cable Design: Passive
• Compatibility: Mellanox MCP2M00-A002 (compatible)
• Conductor Material: Copper
• Hot-Pluggable: Yes
• Protocol Support: Ethernet, InfiniBand
• Form Factor: SFP28
• Electrical Interface: SFP28 MSA Compliant
• Power Consumption: Ultra-low (passive)

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to SFP28 ports. This cable is ideal for short-distance links within racks or between adjacent racks. Always verify compatibility with your specific equipment before installation.
