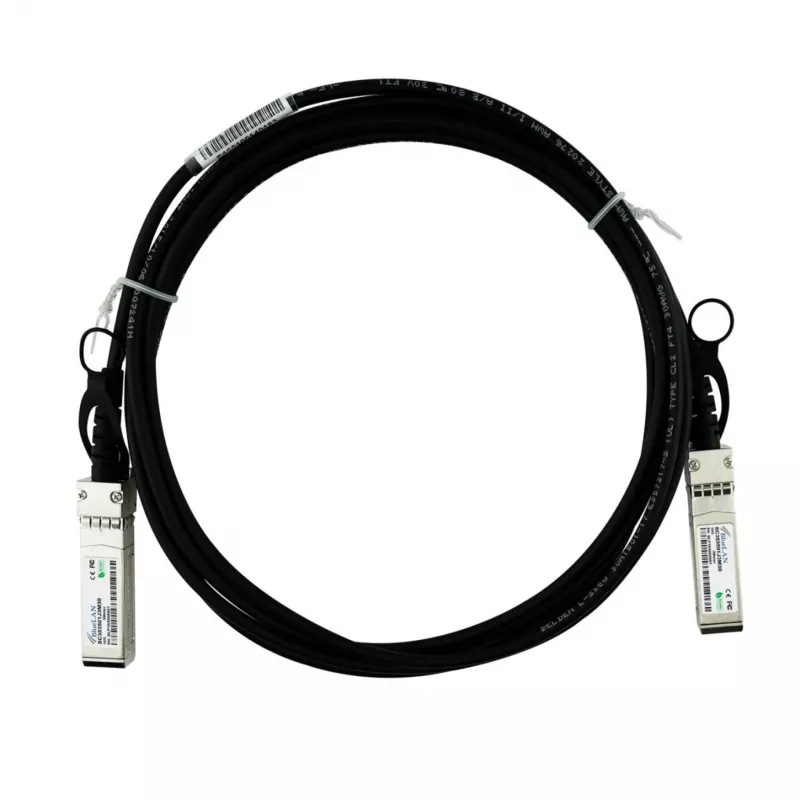

BlueOptics MCP2102-X01AA-BL Συμβατό με BlueLAN 10GBASE-CR Παθητικό Καλώδιο SFP+ Direct Attach, 2m, AWG30

The BlueOptics MCP2102-X01AA-BL is a high-performance, passive Direct Attach Cable (DAC) designed for 10 Gigabit Ethernet connectivity. This Twinax copper cable provides a cost-effective and reliable solution for short-range interconnects in data centers and enterprise networks. With a length of 2 meters and AWG30 gauge, it ensures low latency and minimal power consumption.

Advantages

This cable offers plug-and-play installation, hot-swappable SFP+ connectors, and full compatibility with Mellanox MCP2102-X01AA equipment. Its passive design eliminates the need for external power, reducing overall energy costs. The durable PVC jacket and 100 Ohm impedance guarantee stable signal integrity over the entire length.

Suitable for

• Data center server-to-switch connections
• Storage Area Networks (SAN)
• High-performance computing clusters
• Enterprise network backbone links

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper
• Data Rate: 10 GbE
• Standard: 10GBASE-CR
• Length: 2 meters
• Connectors: SFP+ to SFP+
• Configuration: Passive
• Wire Gauge: AWG30
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.1W
• Compliance: SFF-8431, RoHS
• Certifications: CE, FCC

Recommendations

For optimal performance, ensure that both connected devices support SFP+ interfaces and 10GBASE-CR standards. This cable is an ideal replacement for OEM Mellanox MCP2102-X01AA at a fraction of the cost.
