BlueOptics Loopback Adapter MPO/MTP πολύτροπο OM4

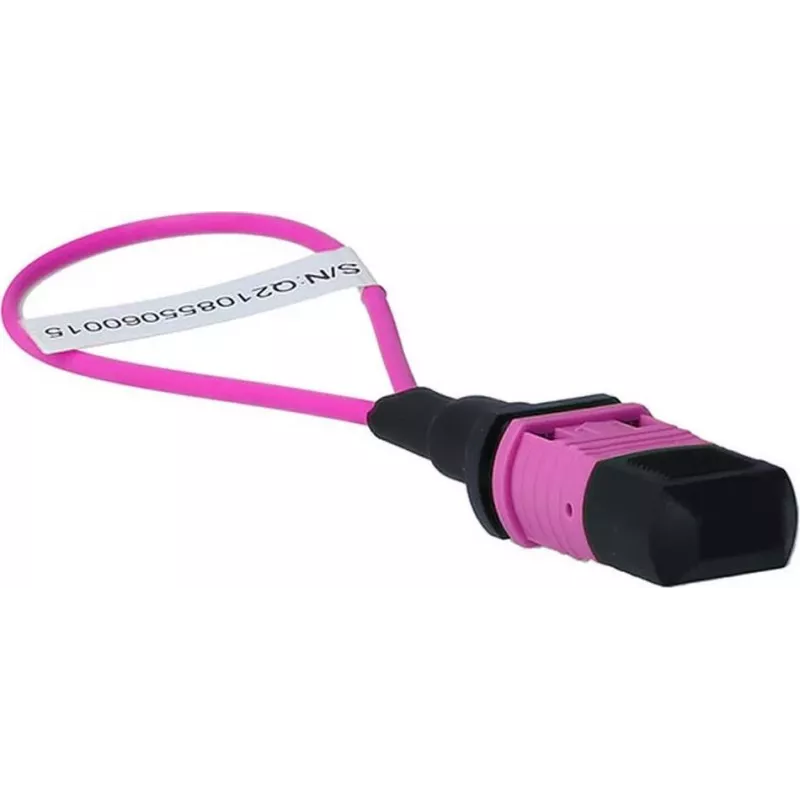

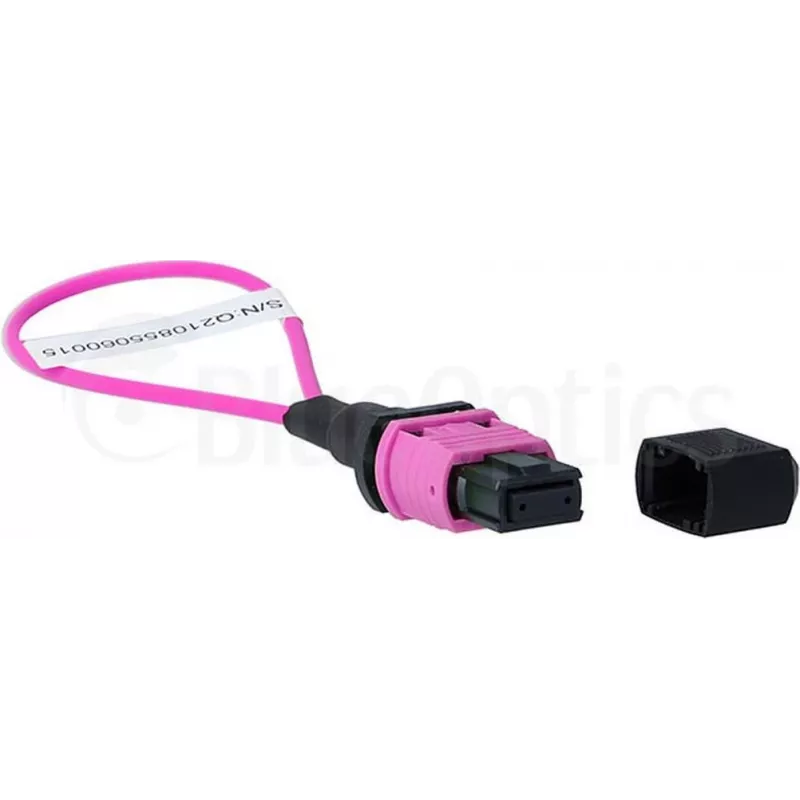

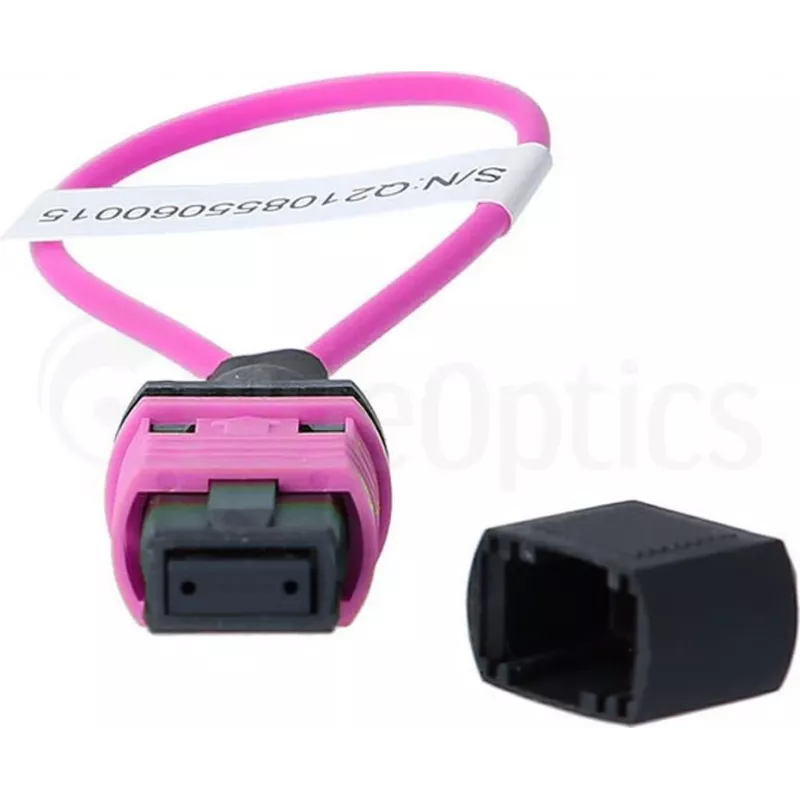

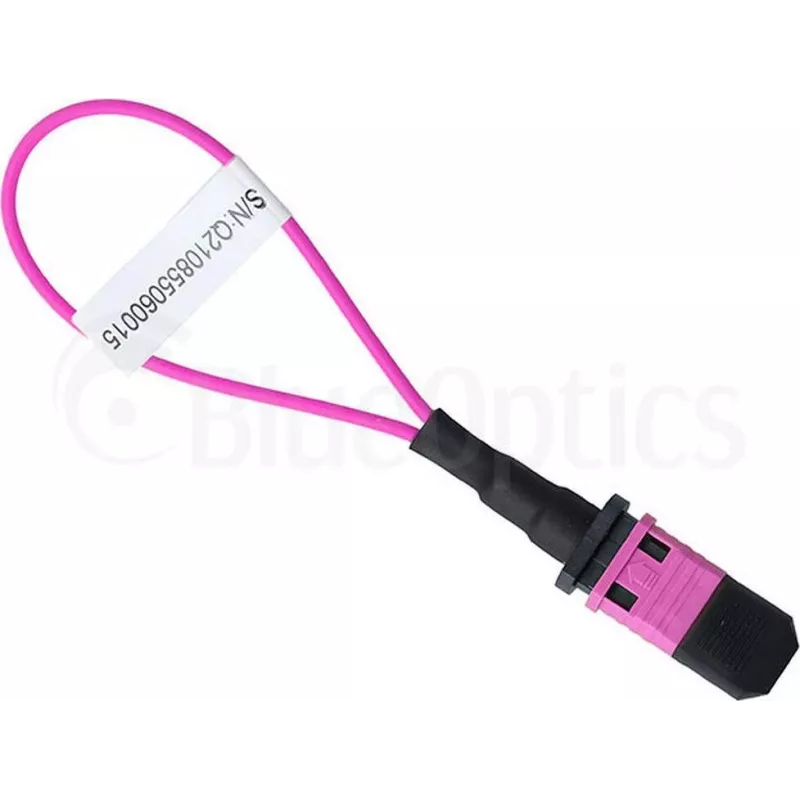

The BlueOptics Loopback Adapter MPO/MTP Multimode OM4 is a high-quality fiber optic testing tool designed for network professionals. It enables efficient loopback testing of multimode OM4 fiber links, ensuring accurate performance verification and troubleshooting. With its robust ceramic ferrule and MPO/MTP duplex connector, this adapter delivers reliable and repeatable results across a wide temperature range.

Advantages

This loopback adapter offers exceptional durability and precision, featuring a ceramic ferrule for low insertion loss and high return loss. It supports 12-fiber MPO/MTP connections, making it ideal for high-density network environments. The adapter operates reliably from -40°C to +85°C, ensuring consistent performance in extreme conditions. Its compact design simplifies testing and burn-in procedures, saving time and effort.

Suitable for

• Network testing and verification of OM4 multimode fiber links
• Burn-in and troubleshooting of MPO/MTP-based systems
• Data center and enterprise network maintenance
• Telecommunications and broadcast applications

Key specifications

• Product Type: Fiber Optic Loopback Adapter
• Fiber Mode: Multimode
• Fiber Type: OM4
• Core/Cladding Diameter: 50/125 µm
• Connector Type: MPO/MTP
• Connector Polish: UPC (Ultra Physical Contact)
• Ferrule Material: Ceramic
• Operating Temperature Range: -40°C to +85°C
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 30 dB
• Number of Fibers: 12-Fiber
• Wavelength Support: 850nm / 1300nm
• Compliance: RoHS Compliant

Recommendations

For optimal performance, use this loopback adapter with OM4 multimode patch cables and MPO/MTP interfaces. Ensure connectors are clean before each use to maintain low insertion loss. This adapter is an essential tool for any network technician's kit.
