BlueOptics Lenovo BF6W συμβατό BlueLAN QSFP56 παθητικό Direct Attach Copper καλώδιο (DAC) 200GbE

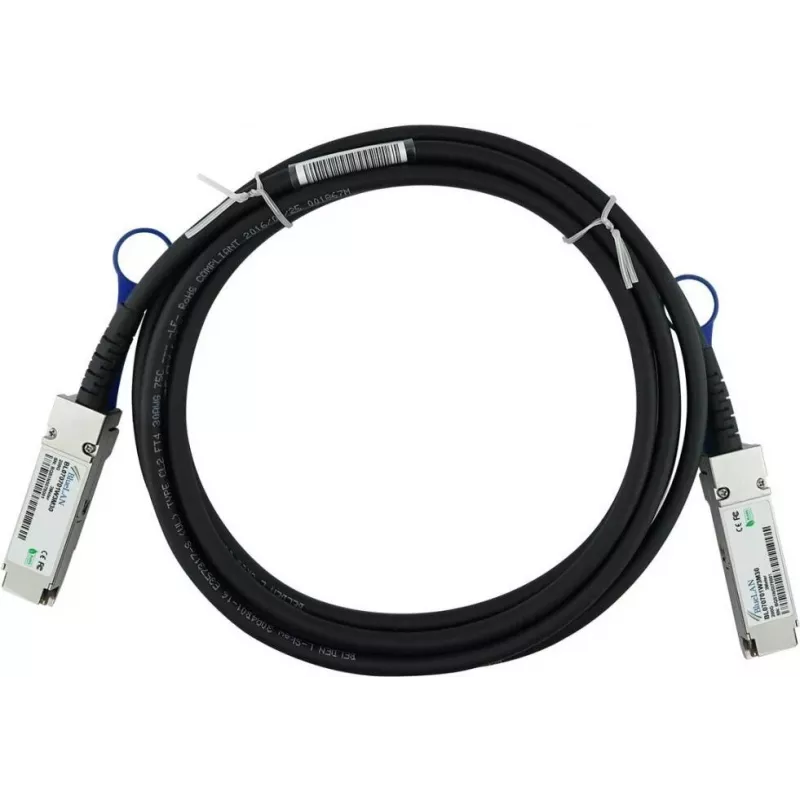

The BlueOptics Lenovo BF6W compatible BlueLAN QSFP56 Passive Direct Attach Copper Cable (DAC) is a high-performance, cost-effective solution for 200 Gigabit Ethernet connections. Designed for use with Lenovo BF6W compatible network equipment, this passive twinaxial copper cable provides reliable, low-latency interconnects within racks and across adjacent racks.

Advantages

This DAC cable offers a plug-and-play solution without the need for external transceivers, reducing power consumption and cost. Its passive design ensures zero power draw, making it an energy-efficient choice for high-density data centers. The QSFP56 form factor supports hot-pluggable installation, simplifying deployment and maintenance.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• Storage area networks requiring 200GbE connectivity
• Enterprise network upgrades to 200 Gigabit Ethernet

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Brand Compatibility: Lenovo BF6W
• Data Transfer Rate: 200 Gigabit Ethernet (200GbE)
• Connector Type (End A): QSFP56
• Connector Type (End B): QSFP56
• Cable Type: Twinaxial Copper
• Cable Design: Passive
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Hot-Pluggable: Yes
• MSA Compliance: SFF-8665
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to QSFP56 ports. This cable is ideal for short-distance interconnects up to 5 meters. Verify compatibility with your specific Lenovo BF6W model before purchase.
