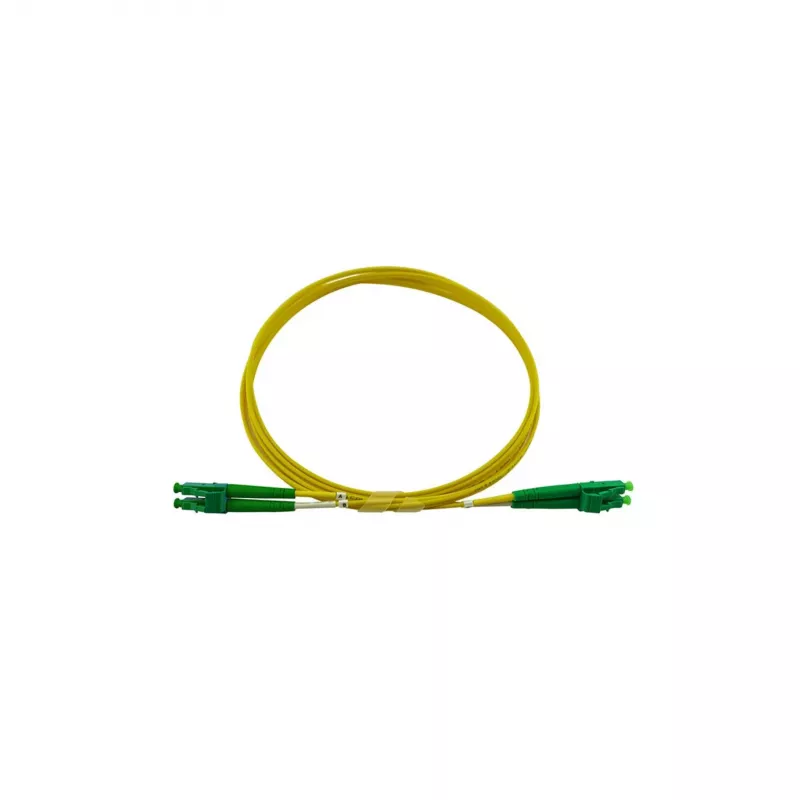

BlueOptics Καλώδιο Patch Οπτικής Ίνας Duplex LC-APC to LC-APC Single-Mode OS2 3,0m

The BlueOptics SFP3131BU3MM is a high-quality duplex fiber optic patch cord designed for reliable single-mode connections. With LC-APC connectors on both ends and a length of 3.0 meters, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This patch cord offers exceptional performance with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the durable zirconia ceramic ferrule ensures long-term reliability. The cable is compliant with RoHS, CE, and TIA/EIA-568-C.3 standards.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx and CATV systems
• High-speed data transmission (10G, 40G, 100G)

Key specifications

• Connector Type: LC-APC to LC-APC
• Fiber Mode: Single-Mode (OS2)
• Cable Length: 3.0 m
• Jacket Color: Yellow
• Jacket Material: LSZH
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥60 dB (typical)
• Ferrule Material: Zirconia Ceramic
• Duplex Cable Diameter: 3.0 mm
• Operating Wavelengths: 1310 nm, 1550 nm
• Core/Cladding Diameter: 9/125 µm
• Polarity: A-B (Crossed)
• Minimum Bend Radius: 10 mm (Dynamic)
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This patch cord is compatible with all standard LC-APC interfaces and is ideal for use with BlueOptics transceivers and other SFP modules.
