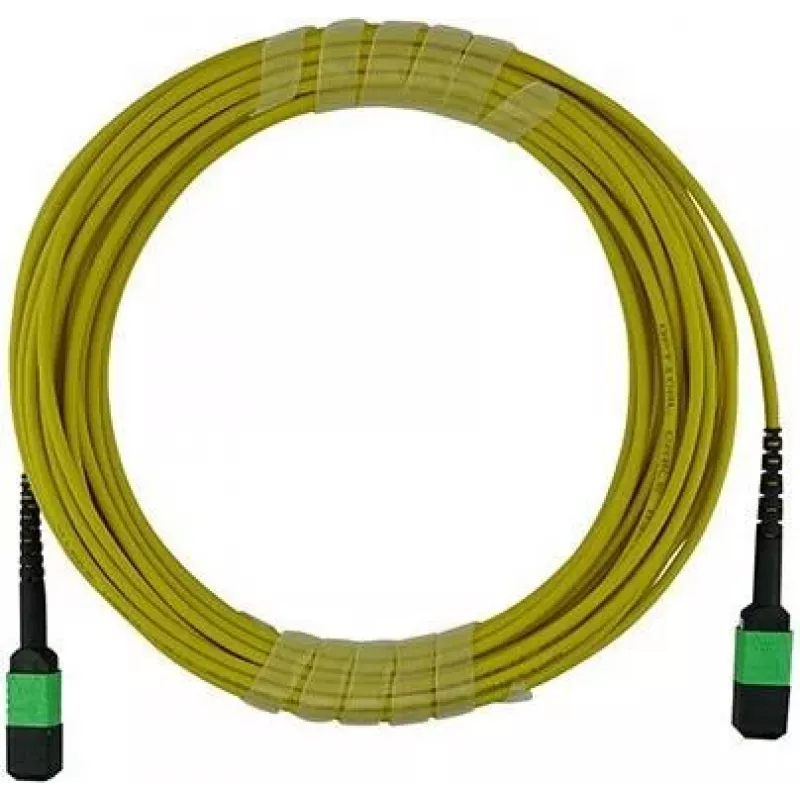

BlueOptics καλώδιο κορμού MPO μονότροπο 12 ινών 2 μέτρα Type B

The BlueOptics MPO Trunk Cable is a high-performance fiber optic trunk cable designed for data centers, SAN, LAN, and FTTx applications. With 12 singlemode fibers and a length of 2 meters, this Type B (cross-over) polarity cable ensures reliable and efficient connectivity for high-speed networks.

Advantages

This MPO trunk cable offers low insertion loss and high return loss, ensuring minimal signal degradation and optimal performance. The LSZH jacket provides safety in enclosed spaces, while the durable zirconia ceramic ferrule ensures long-lasting mating cycles. Its compact 3.0 mm diameter makes it easy to manage in tight spaces.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• FTTx deployments
• High-speed backbone cabling

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Type: Singlemode (OS2)
• Number of Fibers: 12
• Cable Length: 2 Meter
• Connector A: MPO/MTP (Male)
• Connector B: MPO/MTP (Male)
• Polarity: Type B (Cross-over)
• Insertion Loss (Typical): < 0.35 dB
• Return Loss (Typical): > 50 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Fiber Grade: G.657.A1 / G.652.D
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH, TIA/EIA-568-C.3, IEC-61754-7
• Connector Ferrule Material: Zirconia Ceramic
• Mating Cycles: ≥ 500

Recommendations

For optimal performance, ensure proper handling and storage within specified temperature ranges. This cable is ideal for high-density patching areas where space and performance are critical.
