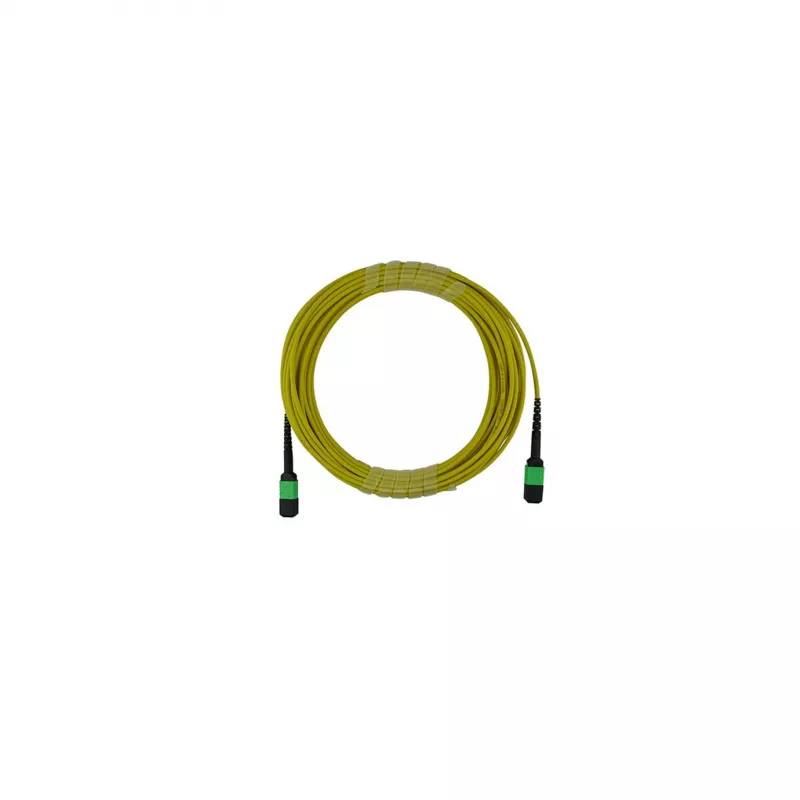

BlueOptics καλώδιο κορμού MPO μονότροπο 12 ινών 10 μέτρα Type B

The BlueOptics MPO trunk cable is a high-performance singlemode fiber optic cable designed for data center and backbone cabling applications. With 12 cores and a length of 10 meters, this type B polarity cable ensures reliable cross-over connections for MPO/MTP systems.

Advantages

This MPO trunk cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The LSZH jacket provides safety in enclosed spaces, and the compact 3.0 mm diameter allows for easy installation in high-density environments.

Suitable for

• Data center infrastructure
• Storage area networks (SAN)
• Local area networks (LAN)
• Backbone cabling

Key specifications

• Cable type: MPO trunk cable
• Fiber type: Singlemode OS2 (G.657.A1 / G.652.D)
• Fiber count: 12 fibers
• Cable length: 10 meters
• Connector A: MPO/MTP female
• Connector B: MPO/MTP female
• Polarity: Type B (cross-over)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 3.0 mm
• Insertion loss (max): 0.35 dB per connector
• Return loss (min): 50 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7
• Ferrule material: Zirconia ceramic
• Minimum bend radius: 30 mm (10D)

Recommendations

For optimal performance, pair this cable with compatible MPO/MTP adapters and ensure proper polarity management in your network.
