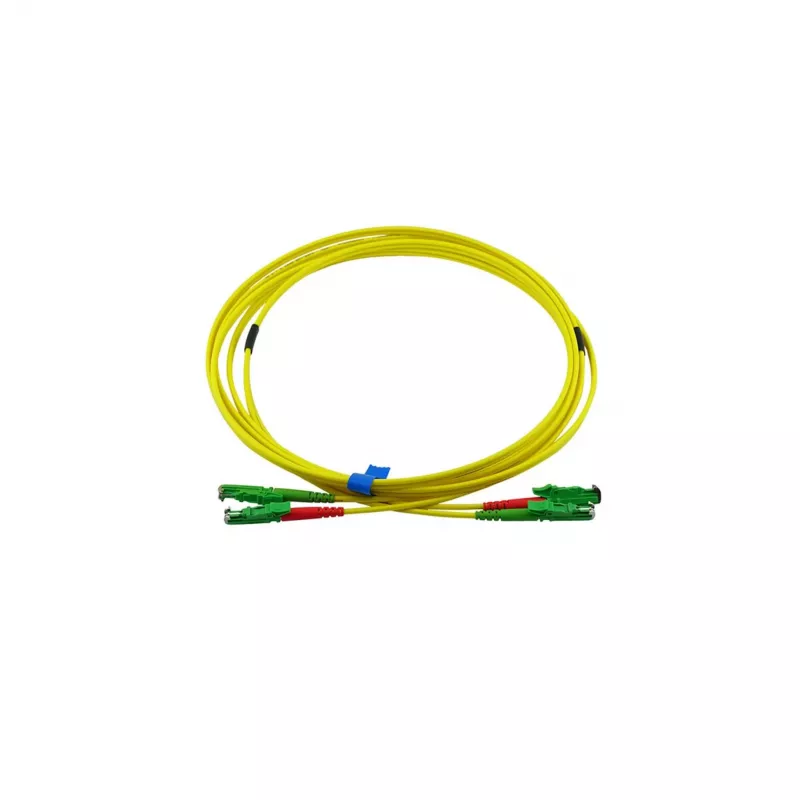

BlueOptics Duplex Καλώδιο Patch Οπτικής Ίνας E2000-APC/E2000-APC OS2 Singlemode 2m πράσινο

The BlueOptics SFP3838BU2MM is a high-quality duplex fibre optic patch cable designed for reliable single-mode connections in data centres, telecommunications, FTTH, LAN, and SAN environments. Featuring E2000-APC connectors on both ends with APC polish, this cable ensures low insertion loss and high return loss for optimal signal integrity. The 2-metre length provides flexibility in rack and cabinet installations, while the green LSZH jacket offers durability and safety in confined spaces.

Advantages

This cable delivers exceptional performance with typical insertion loss ≤0.2 dB and return loss ≥60 dB, minimising signal degradation. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for indoor use. The duplex configuration supports bidirectional data transmission, and the E2000-APC connectors provide secure, low-back-reflection connections.

Suitable for

• Data centre patching and cross-connects
• Telecommunications networks
• FTTH (Fibre to the Home) installations
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• High-speed single-mode fibre applications

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single Mode (OS2)
• Fibre Standard: E9/125µm
• Cable Configuration: Duplex
• Connector A: E2000-APC
• Connector B: E2000-APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 2 Metres
• Jacket Colour: Green
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 60 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 30 mm
• Compliance: RoHS, CE, IEC 61754-15, TIA/EIA-604-16

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is compatible with all standard E2000-APC interfaces.
