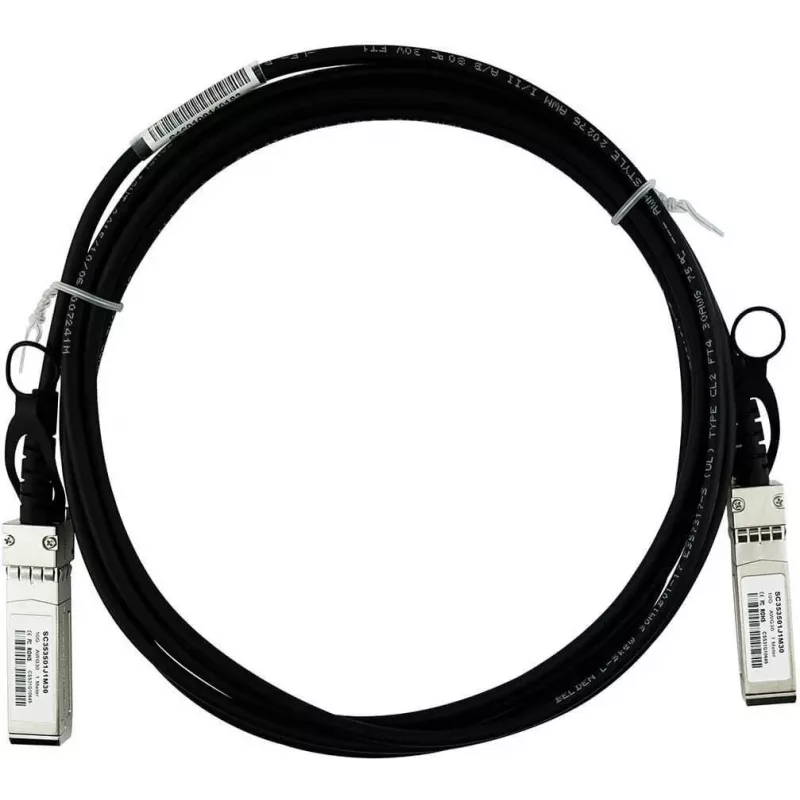

BlueOptics DAC-SFP-10G-2M-AU-BL καλώδιο SFP+ Direct Attach Copper 2m μαύρο

The BlueOptics DAC-SFP-10G-2M-AU-BL is a high-performance SFP+ Direct Attach Copper (DAC) cable designed for 10 Gigabit Ethernet connections. With a length of 2 meters and a passive design, it provides a reliable, low-latency link for data centers, enterprise networks, and high-performance computing environments. The cable is fully compliant with SFP+ MSA standards and is compatible with a wide range of networking equipment from leading vendors.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range 10GbE connections. Its passive design ensures near-zero power consumption (<0.1W) and eliminates the need for external power sources. The 30 AWG wire gauge and PVC jacket provide durability and flexibility for easy installation in tight spaces. Hot-swappable capability allows for seamless upgrades and maintenance without network downtime.

Suitable for

• Data Center Interconnects
• High-Performance Computing (HPC) Clusters
• Enterprise Networking
• Storage Area Networks (SAN)
• Server-to-Switch and Switch-to-Switch Connections

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector Type: SFP+ to SFP+
• Data Transfer Rate: 10 GbE
• Cable Length: 2 meters (6.56 ft)
• Passive/Active: Passive
• AWG Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Compliance: SFP+ MSA Compliant
• Hot-Swappable: Yes
• Power Consumption: < 0.1W
• Jacket Material: PVC
• Color: Black
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both connected devices support SFP+ 10GbE and are configured for passive DAC cables. This cable is an ideal choice for short-distance, high-speed links within racks or between adjacent racks.
