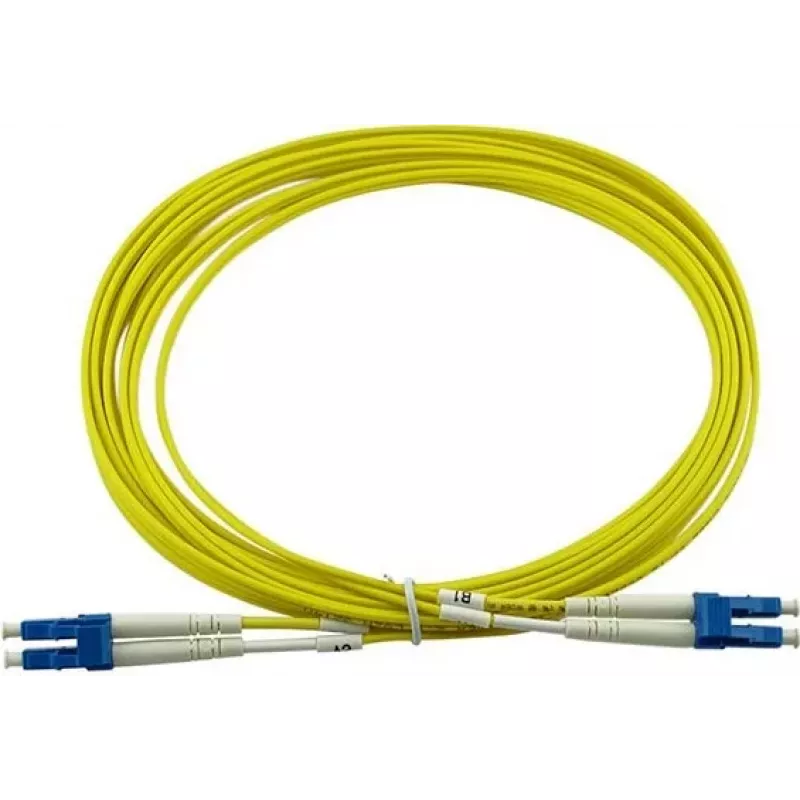

BlueOptics CB-LC-LC-SMF5M LC-LC καλώδιο patch Singlemode 5 μέτρα

The BlueOptics CB-LC-LC-SMF5M is a high-quality LC-LC singlemode fiber optic patch cable, designed for reliable and high-performance data transmission in demanding network environments. With a length of 5 meters and duplex 9/125 µm fiber, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunication networks, LAN, SAN, and FTTx applications.

Advantages

This patch cable offers excellent signal integrity with ≤0.3 dB insertion loss and ≥50 dB return loss. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the yellow color ensures easy identification. It is fully compliant with RoHS, CE, and TIA/EIA-568-C.3 standards, guaranteeing compatibility and performance.

Suitable for

• Data Centers
• Telecommunication Networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode (SMF)
• Connector Type A: LC
• Connector Type B: LC
• Connector Polish: UPC
• Cable Length: 5 Meter
• Fiber Core/Cladding Diameter: 9/125 µm
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces.
