BlueOptics BS32 Συμβατό BlueLAN Καλώδιο DAC QSFP28 SC282701L2M26 (BS32-BL)

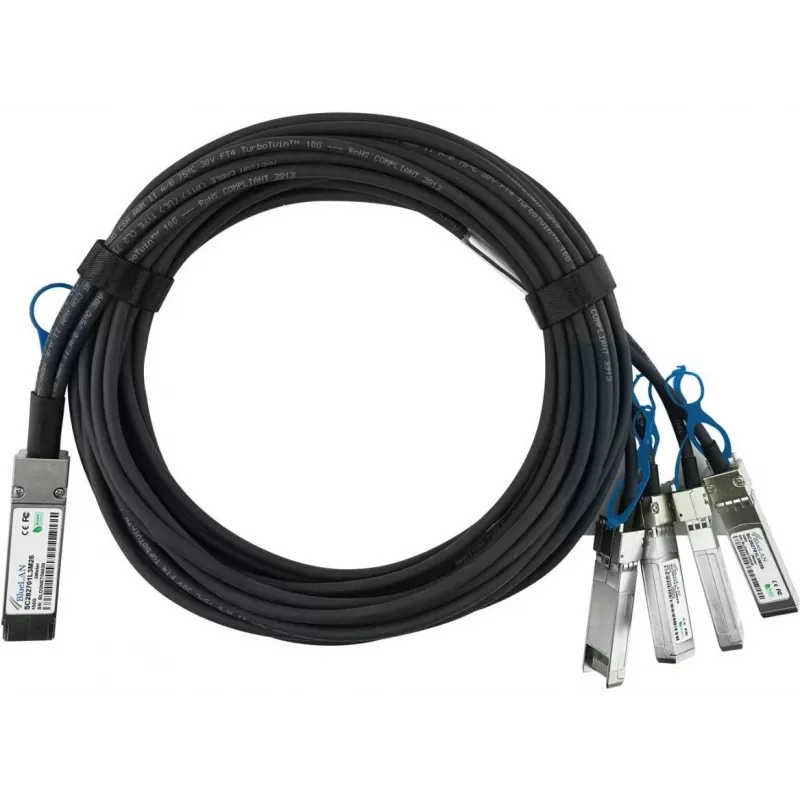

The BlueOptics BS32-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with BlueOptics BS32 and BlueLAN switches, providing a reliable and cost-effective solution for short-range interconnects in data centers and enterprise networks.

Advantages

This QSFP28 to QSFP28 DAC cable offers low power consumption (<0.5W), hot-pluggability, and compliance with IEEE 802.3bj (100GBASE-CR4) and SFF-8665 MSA standards. Its passive design ensures zero latency and high signal integrity for distances up to 2 meters.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise networking and storage area networks

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GBASE-CR4)
• Length: 2 meters
• Cable Material: Copper
• Form Factor: QSFP28
• Compatibility: BlueOptics BS32, BlueLAN
• Protocol Support: IEEE 802.3bj
• Cable Gauge: 26AWG
• Passive/Active: Passive
• Hot-Pluggable: Yes
• Impedance: 100 Ohm Differential
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• MSA Compliance: SFF-8665
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with compatible BlueOptics or BlueLAN QSFP28 ports. Ensure proper cable management to maintain signal integrity.
