BlueOptics απλό καλώδιο patch οπτικών ινών LC-UPC σε LC-APC μονότροπο 10m

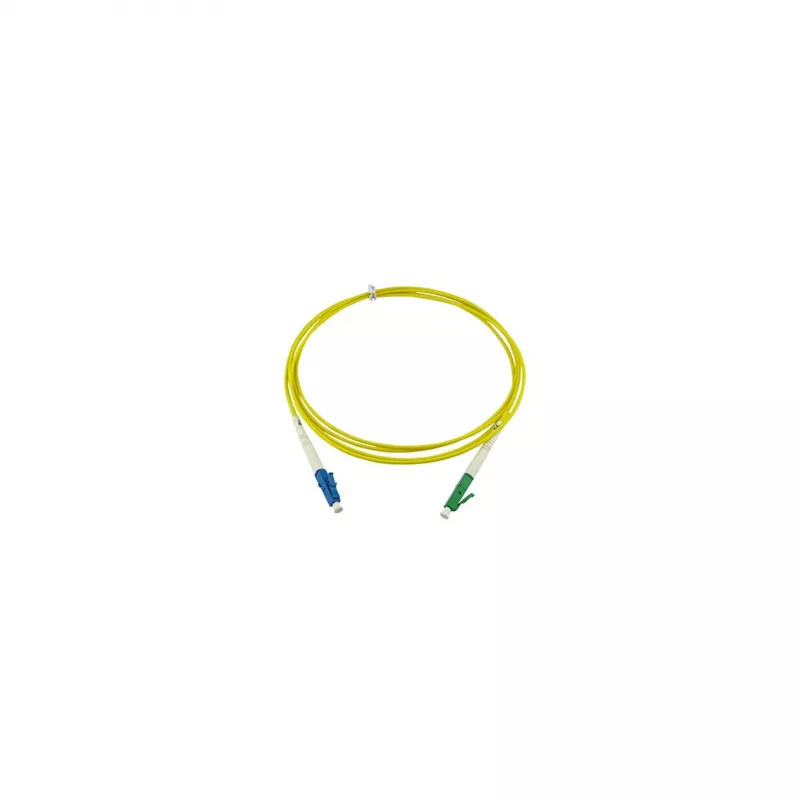

The BlueOptics SFP2121BU10MS is a high-quality simplex fibre optic patch cable designed for reliable singlemode connections. Featuring LC-UPC to LC-APC connectors, this 10-metre cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication networks. The LSZH jacket provides safety in confined spaces, and the yellow colouring allows for easy identification.

Advantages

Low insertion loss (<0.3 dB typical) and high return loss (UPC >50 dB, APC >60 dB) ensure excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, and the 9/125 µm core/cladding diameter is standard for singlemode applications.

Suitable for

• Fibre optic network installations
• Data centres and server rooms
• Telecommunications and CATV
• FTTH (Fiber to the Home)

Key specifications

• Connector A: LC-UPC
• Connector B: LC-APC
• Length: 10 metres
• Fibre Mode: Singlemode (9/125 µm)
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: <0.3 dB typical
• Return Loss UPC: >50 dB
• Return Loss APC: >60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Zirconia Ceramic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC interfaces. Store in a clean, dry environment.
