BlueLAN Συμβατό με NVIDIA 980-9I63Z-00A01A SFP28 25GBASE-CR Παθητικό Direct Attach Καλώδιο Χαλκού 3m

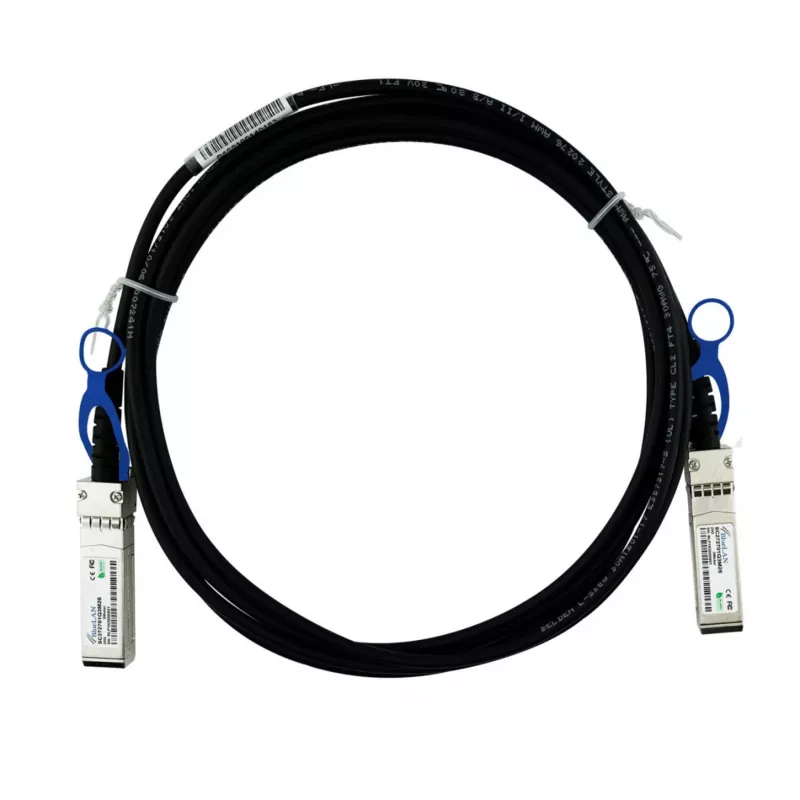

The BlueLAN 980-9I63Z-00A01A-BL is a high-performance, passive direct attach copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. It is fully compatible with NVIDIA (Mellanox) ConnectX series network interface cards and switches, providing a cost-effective and reliable solution for data center interconnects, server-to-switch, and rack-to-rack applications.

Advantages

This SFP28 to SFP28 passive DAC cable offers low power consumption (<0.1W), hot-swappable capability, and a durable twinax copper construction. With a length of 3 meters and 30 AWG wire gauge, it ensures excellent signal integrity and minimal latency for high-speed data transmission.

Suitable for

• Data center interconnects
• Server-to-switch connections
• Rack-to-rack cabling
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Connector Type: SFP28 to SFP28
• Cable Length: 3.0 meters
• Cable Design: Passive
• Impedance: 100 Ohm
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with NVIDIA Mellanox ConnectX-4 Lx or later adapters and compatible switches. Ensure proper handling and installation to maintain signal quality.
