BlueLAN Συμβατό με Maipu SFP-STACK-10 10GBASE-CR παθητικό καλώδιο SFP+ Direct Attach, 1m, AWG30

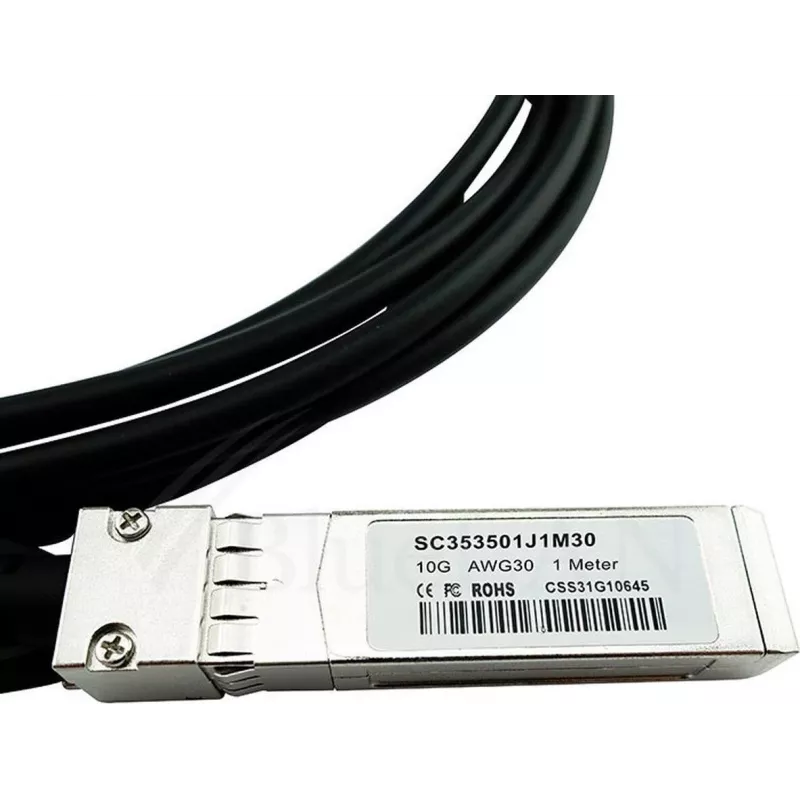

The BlueLAN SFP-STACK-10-BL is a high-performance, passive Direct Attach Cable (DAC) designed for 10 Gigabit Ethernet connectivity. It is fully compatible with Maipu SFP-STACK-10 equipment, providing a reliable and cost-effective solution for short-range, high-speed interconnects in data centers and enterprise networks.

Advantages

This DAC cable offers low power consumption (<0.1W), hot-swappable convenience, and a rugged twinax copper design for minimal signal loss. With a length of 1 meter and AWG30 wire gauge, it is ideal for top-of-rack or adjacent device connections, reducing cable clutter and improving airflow.

Suitable for

• Data center server-to-switch connections
• High-performance computing (HPC) clusters
• Enterprise networking equipment
• Maipu SFP-STACK-10 compatible devices

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper Cable
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gbps
• Ethernet Standard: 10GBASE-CR
• Cable Length: 1 meter (3.3 ft)
• Wire Gauge: AWG30
• Cable Design: Passive
• Compatibility: Maipu SFP-STACK-10 (OEM Equivalent)
• Hot-Swappable: Yes
• Power Consumption: < 0.1W
• Impedance: 100 Ohm
• Voltage Supply: 3.3V
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: RoHS, CE, FCC
• Jacket Material: PVC
• MTBF: > 500,000 hours

Recommendations

For optimal performance, ensure your equipment supports SFP+ 10GBASE-CR passive DAC cables. This cable is a direct replacement for Maipu SFP-STACK-10 and is backed by BlueLAN's quality assurance.
