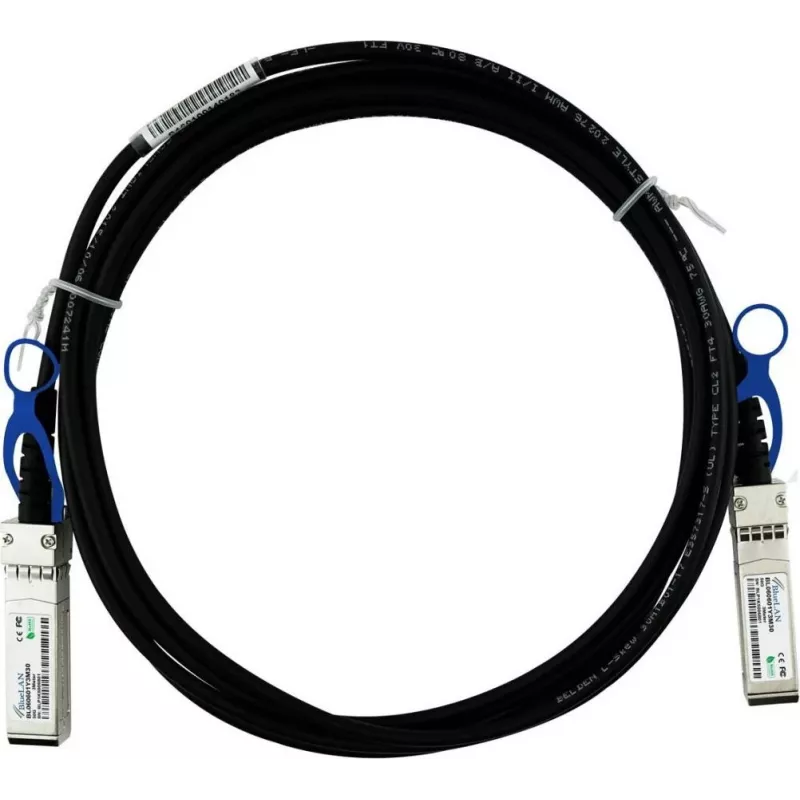

BlueLAN SFP56 Direct Attach Cable 50GBASE-CR Παθητικό 0,5m NVIDIA 980-9I876-00G00A Συμβατό

The BlueLAN SFP56 Direct Attach Cable (DAC) is a high-performance, passive copper cable designed for 50GBASE-CR applications. It provides a cost-effective and reliable interconnect solution for data centers and high-performance computing environments. This 0.5-meter cable is compatible with NVIDIA Mellanox equipment, equivalent to the 980-9I876-00G00A model, ensuring seamless integration into existing networks.

Advantages

This passive DAC cable offers low power consumption (<0.1W) and high signal integrity, making it an ideal choice for short-range, high-speed connections. Its hot-swappable design allows for easy installation and maintenance without network downtime. The cable is compliant with RoHS, CE, FCC, and MSA standards, ensuring environmental and regulatory compliance.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network switch to server connections
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper
• Data Rate: 50 Gbps
• Ethernet Standard: 50GBASE-CR
• Connector Type (End A): SFP56
• Connector Type (End B): SFP56
• Cable Length: 0.5 meters
• Cable Design: Passive
• Compatibility: NVIDIA Mellanox (Equivalent to 980-9I876-00G00A)
• AWG: 30 AWG
• Impedance: 100 Ohm
• Protocol Support: Ethernet, InfiniBand
• Hot-Swappable: Yes
• Power Consumption: < 0.1W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• Color: Black

Recommendations

For optimal performance, pair this cable with compatible SFP56 transceivers and ensure proper handling to avoid damage. Ideal for short-distance, high-speed links within racks or between adjacent racks.
