BlueLAN Παθητικό QSFP112 Direct Attach Καλώδιο Χαλκού, 400GBASE Ethernet, InfiniBand, 2m

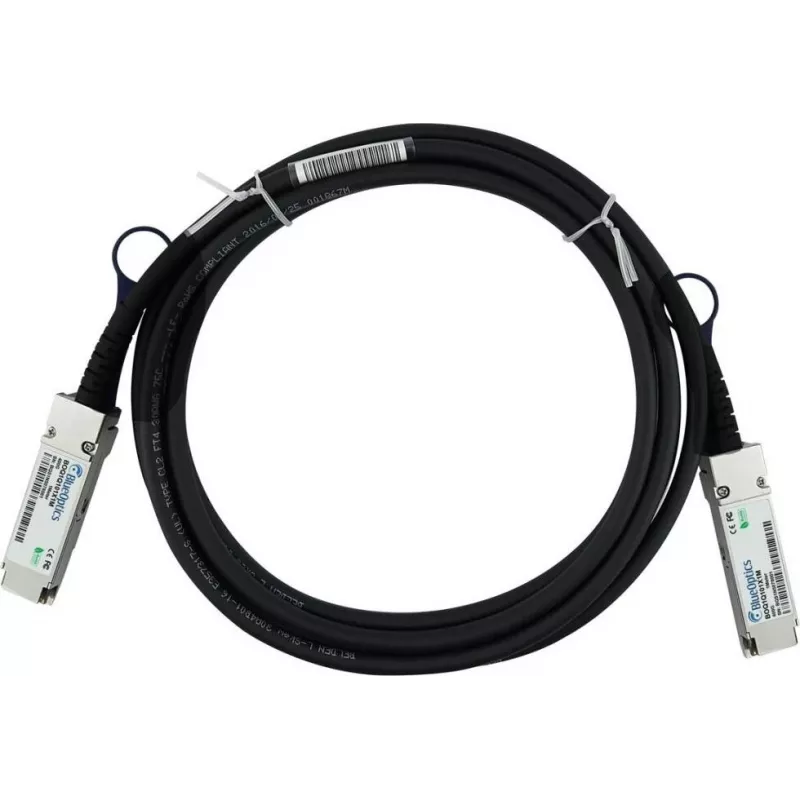

The BlueLAN BOQ1Q101X2M-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for 400GBASE Ethernet and InfiniBand applications. With QSFP112 connectors on both ends and a length of 2 meters, it provides a reliable, low-latency connection for data center interconnects, high-performance computing (HPC), and enterprise networking.

Advantages

This passive DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed links. It consumes less than 0.5W, eliminating the need for external power. The 26AWG copper construction ensures signal integrity, while the LSZH jacket enhances safety in enclosed spaces. Hot-pluggable design simplifies installation and maintenance.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network switches and routers
• InfiniBand interconnects

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP112 to QSFP112
• Data Rate: 400 Gbps
• Cable Length: 2 meters
• Cable Material: Passive Copper, 26AWG
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Jacket Material: LSZH

Recommendations

For optimal performance, use this cable with QSFP112-compatible ports on switches, routers, and network interface cards. Ensure proper cable management to maintain signal integrity. This passive DAC is ideal for short-reach links up to 2 meters within racks or adjacent racks.
