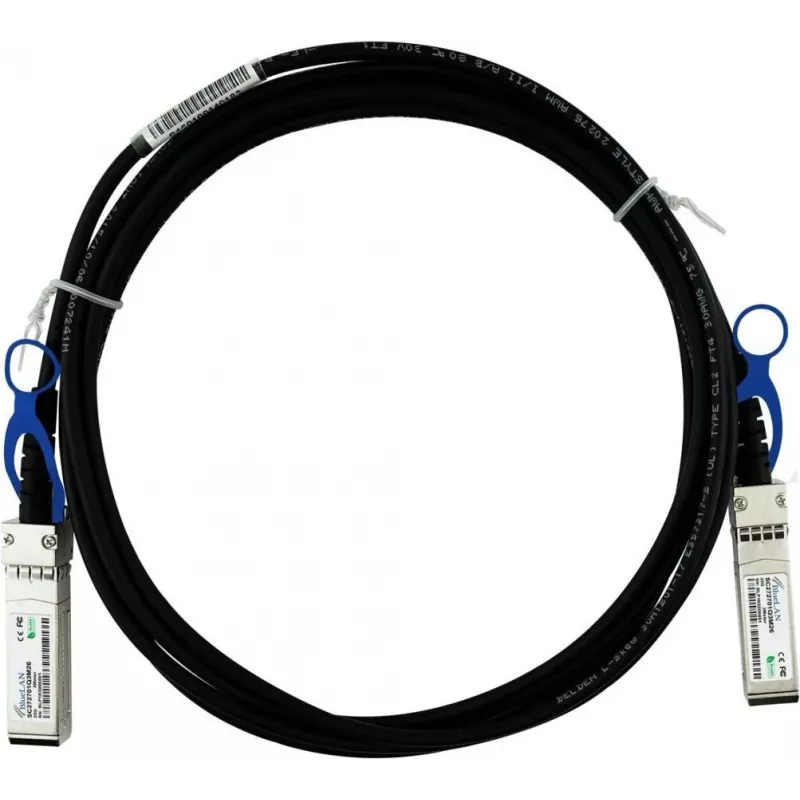

BlueLAN FN-CABLE-SFP28-2-BL Συμβατό Fortinet 25GBASE-CR Παθητικό SFP28 Direct Attach Χάλκινο Καλώδιο 2m

The BlueLAN FN-CABLE-SFP28-2-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 25 Gigabit Ethernet connectivity. It is fully compatible with Fortinet FN-CABLE-SFP28-2 and provides a cost-effective, low-latency solution for short-range interconnects in data centers and enterprise networks.

Advantages

This passive DAC cable offers the lowest power consumption (<0.1W) compared to active optical cables, making it an energy-efficient choice. It supports hot-swappable SFP28 connectors on both ends, ensuring easy installation and replacement without network downtime. The 2-meter length is ideal for rack-to-rack or server-to-switch connections within the same cabinet.

Suitable for

• Data center interconnects
• Server-to-switch connections
• High-performance computing clusters
• Storage area networks

Key specifications

• Data Rate: 25 Gbps
• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: SFP28 to SFP28
• Cable Length: 2 meters (6.56 ft)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Standard: IEEE 802.3by (25GBASE-CR)
• Compatibility: Fortinet FN-CABLE-SFP28-2
• Hot-Swappable: Yes
• Power Consumption: <0.1W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: RoHS, CE, FCC, SFF-8402, SFF-8431, SFF-8472

Recommendations

For optimal performance, use this cable with compatible Fortinet switches and network interface cards that support 25GBASE-CR. Ensure the cable is not bent beyond its minimum bend radius to maintain signal integrity.
