BlueLAN Dell C4D08 Συμβατό 10GBASE-CR παθητικό καλώδιο SFP+ σε SFP+ Direct Attach, 1m, AWG30

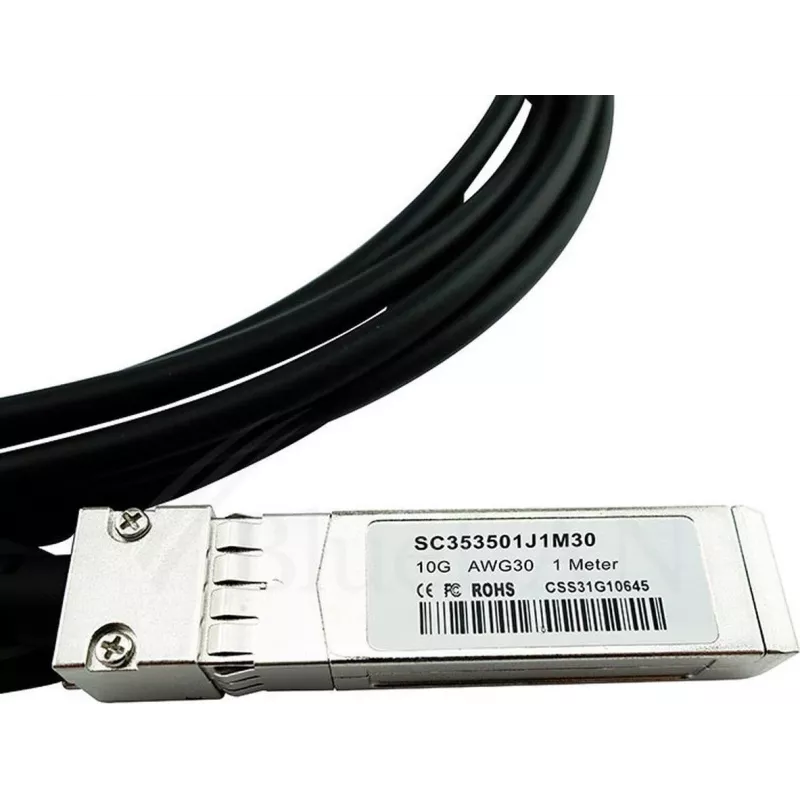

The BlueLAN Dell C4D08 compatible 10GBASE-CR passive SFP+ to SFP+ direct attach cable (DAC) provides a cost-effective, high-performance interconnect solution for data centers, storage area networks (SAN), and high-performance computing (HPC) environments. With a length of 1 meter and 30 AWG twinax copper construction, this passive DAC delivers ultra-low latency and power consumption while ensuring reliable 10 Gigabit Ethernet connectivity.

Advantages

This BlueLAN DAC is designed to be fully compatible with Dell C4D08 and other SFP+ MSA compliant devices, offering seamless integration without the need for additional transceivers. The passive design eliminates the need for external power, reducing overall system power consumption and heat generation. The 30 AWG gauge ensures flexibility for easy cable management in tight spaces, while the PVC jacket provides durability and protection.

Suitable for

• Data center server-to-switch interconnects
• Storage area network (SAN) and network-attached storage (NAS) links
• High-performance computing (HPC) clusters
• 10 Gigabit Ethernet (10GbE) network upgrades

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Standard: 10GBASE-CR
• Cable Length: 1 Meter (3.3 feet)
• AWG: 30 AWG
• Cable Design: Passive
• Compatibility: Dell C4D08, SFP+ MSA Compliant Devices
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (Passive)
• Impedance: 100 Ohm
• Protocol Support: Ethernet, Fibre Channel, InfiniBand
• Compliance: SFF-8431, SFF-8472, RoHS
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Recommendations

For optimal performance, ensure that both connected devices support SFP+ interfaces and 10GBASE-CR standard. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks.
