BIRA HARTTE S12U Ηλεκτρικό κυπρί, σειρά S, 12V AC/DC, στάνταρ

The BIRA HARTTE S12U is an electric strike from the S series, designed for 12V AC/DC operation. It features a symmetrical construction for universal use in left- and right-handed doors and operates in NC (normally closed) mode.

Key features

• Universal for left- and right-handed doors
• NC (normally closed) operation
• Symmetrical construction
• Mechanical strength: 3500N (350kg)
• 200,000 opening cycles
• Strike with 4 mm adjustment

Specifications

• Brand: BIRA
• MPN: S12U
• Model: S12U
• Series: S
• Voltage: 12V AC/DC

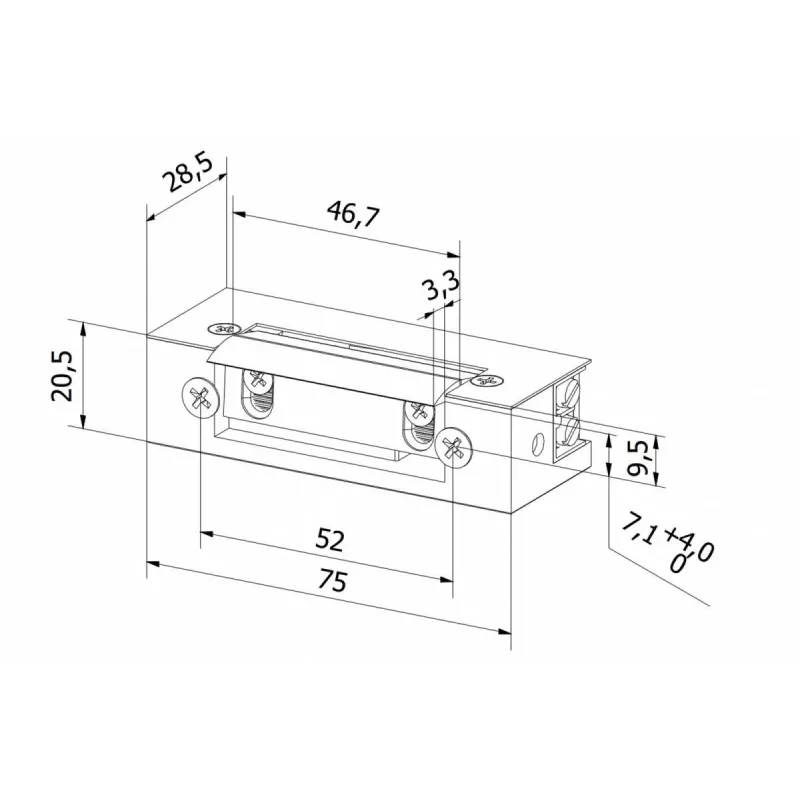

• Dimensions (W x H x D): 20.5 x 75 x 28.5 mm
• Voltage tolerance: 10-14 V
• Resistance: 21 Ohm
• Current consumption AC: 400 mA
• Current consumption DC: 570 mA
• Continuous operation under current (100% ED): no
