BFT ATHOS KIT AC A25 για περιστρεφόμενες πόρτες

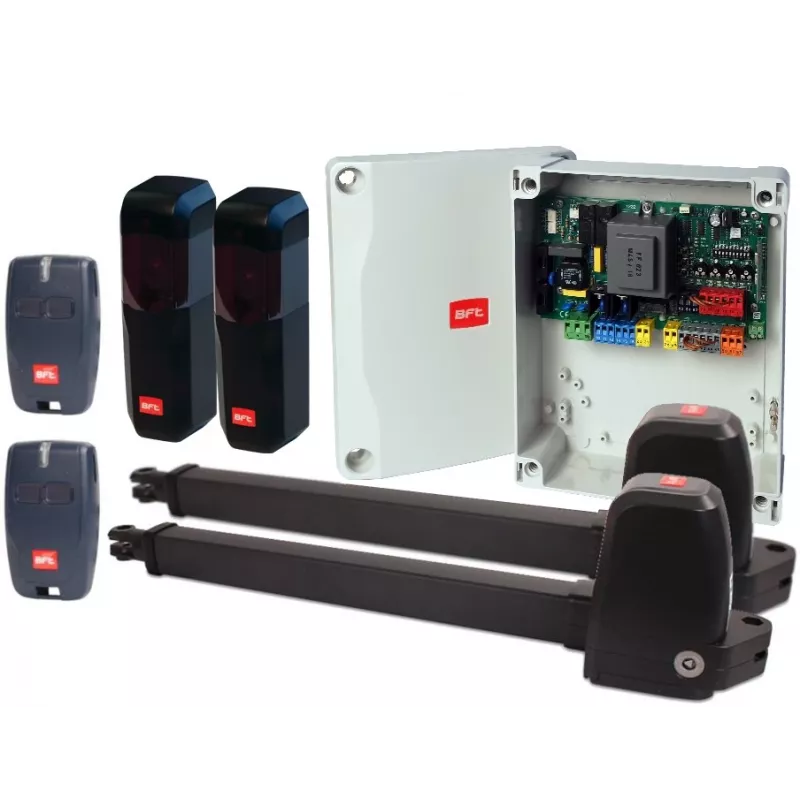

The BFT ATHOS KIT AC A25 is a complete electromechanical automation kit designed for residential swing gates. This kit includes two ATHOS AC A25 articulated arm motors, a THALIA control unit, photocells, a flashing light, a remote control, and an antenna, providing everything needed for a professional installation. With a maximum gate leaf length of 2.5 meters and a weight capacity of 400 kg per leaf, it is suitable for medium to large swing gates. The motor operates on 230V AC with a power consumption of 250 W, offering an opening time of approximately 16 seconds for 90 degrees. The system features magnetic limit switches, an irreversible mechanical lock, and obstacle detection via encoder for enhanced safety. The IP44 protection rating ensures reliable outdoor operation in temperatures from -20°C to +55°C.

Advantages

This kit provides a complete solution for automating swing gates, including all necessary components for installation. The articulated arm design is ideal for gates with limited space, and the magnetic encoder ensures precise positioning and obstacle detection. The THALIA control unit offers advanced programming options and compatibility with various accessories.

Suitable for

• Residential swing gates
• Gate leaves up to 2.5 meters in length
• Gate leaves weighing up to 400 kg per leaf
• Outdoor installations with IP44 protection

Key specifications

• Motor Type: Electromechanical Articulated Arm
• Power Supply: 230V AC, 50/60Hz
• Power Consumption: 250 W
• Max Gate Leaf Length: 2.5 m
• Max Gate Leaf Weight: 400 kg per leaf
• Opening Time (90°): Approx. 16 seconds
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Max Thrust: 2000 N
• Max Opening Angle: 120 degrees
• Locking Type: Irreversible (Mechanical Lock)
• Limit Switches: Magnetic
• Encoder: Magnetic

Recommendations

For optimal performance, ensure the gate is well-balanced and the installation is carried out by a qualified professional. Regular maintenance of the motors and control unit is recommended to prolong the system's lifespan.
