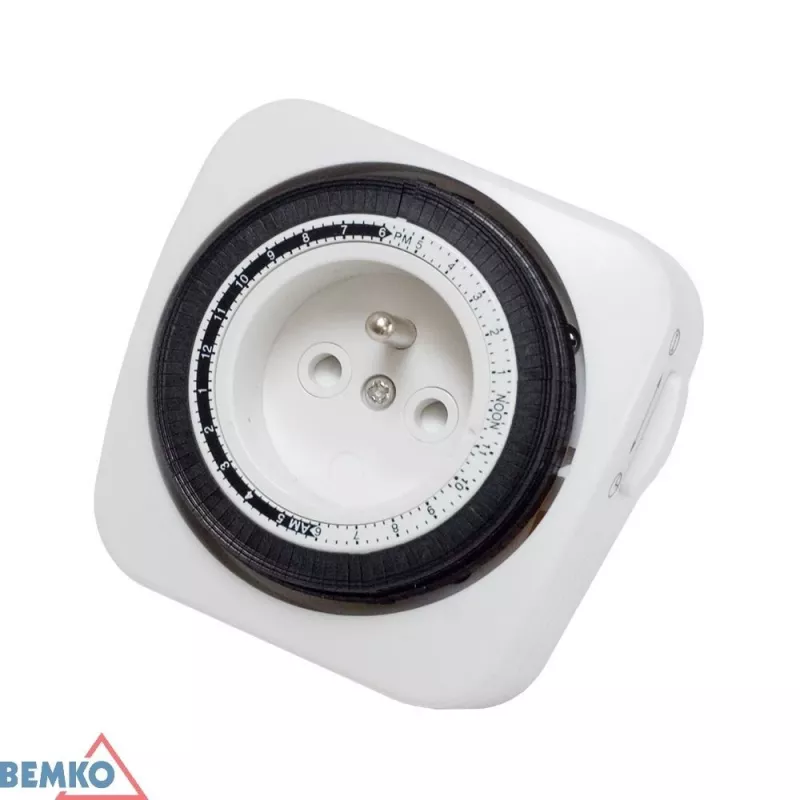

BEMKO B60-TSMF20 Μηχανικός χρονοδιακόπτης 24H-MINI 16A 230V

The BEMKO B60-TSMF20 Mechanical Timer 24H-MINI is a reliable and easy-to-use timer switch designed for precise control of electrical devices. With a 24-hour cycle and 15-minute minimum setting interval, it allows up to 96 daily programs, making it ideal for automating lighting, appliances, and other equipment. The timer features a Type F (Schuko) socket and plug, supports a maximum load of 16A (3680W), and includes a manual override for added convenience. Its compact white ABS housing with IP20 protection ensures safe operation in indoor environments.

Advantages

This mechanical timer offers simple, intuitive operation without the need for batteries or complex programming. The 24-hour dial and push-pin segments allow quick setup of on/off cycles. The manual override lets you temporarily switch connected devices on or off without disrupting the programmed schedule. With a standby power consumption of less than 1W, it is energy-efficient.

Suitable for

• Automating indoor lighting, lamps, and decorative lights
• Controlling household appliances like coffee makers, fans, or heaters
• Managing ventilation systems, aquariums, or terrariums
• Energy-saving scheduling for office or retail equipment

Key specifications

• Timer Type: Mechanical
• Operating Voltage: 230V AC
• Frequency: 50 Hz
• Max Load Current: 16 A
• Max Load Power: 3680 W
• Time Cycle: 24 hours
• Minimum Setting Interval: 15 minutes
• Number of Daily Programs: 96
• Socket Type: Type F (Schuko)
• Plug Type: Type F (Schuko)
• Number of Controlled Sockets: 1
• Manual Override: Yes
• Protection Rating: IP20
• Housing Material: ABS Plastic
• Color: White
• Operating Temperature: -10°C to +40°C
• Certifications: CE, RoHS
• Power Consumption (Standby): <1W

Recommendations

For optimal performance, use the timer in dry indoor locations only. Ensure the connected load does not exceed 16A (3680W). The timer is not suitable for controlling devices with inductive loads (e.g., motors) without additional protection. Always follow local electrical regulations.
