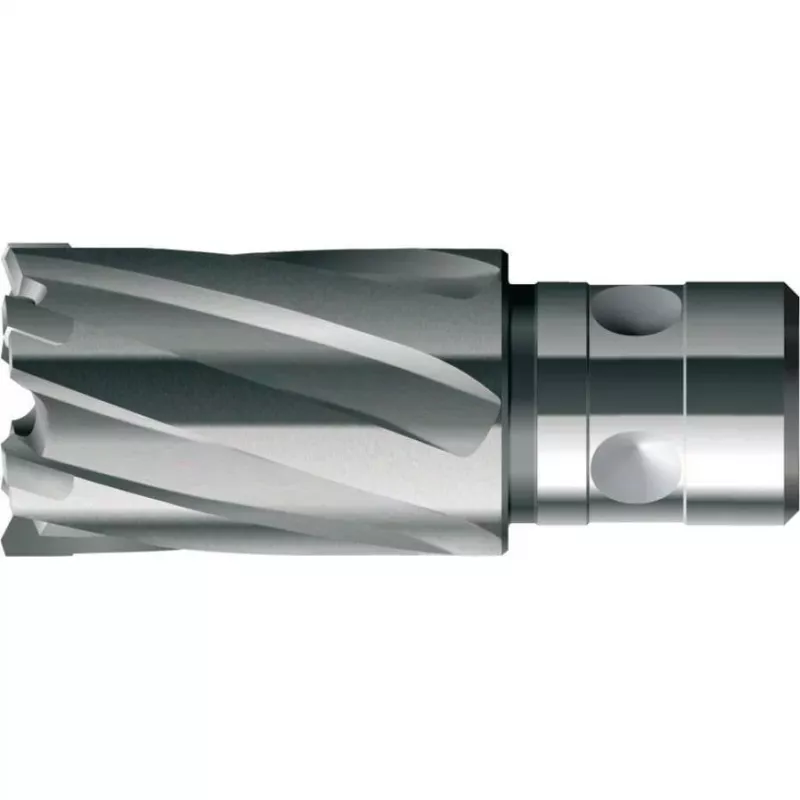

BDS HM-τρυπάνι πυρήνα D18/35mm Quick In (HKK-F018)

An 18 mm annular cutter with a 35 mm cutting depth, engineered for magnetic drilling machines and fitted with the BDS Quick-In shank for fast tool changes.

Overview

The BDS HM-Kernbohrer D18/35mm Quick In is a tungsten carbide tipped core drill for precise hole drilling in metal. It cuts a clean 18 mm diameter hole to a depth of 35 mm in steel, stainless steel, cast iron and structural steel. The four cutting edges and optimized chip removal deliver efficient drilling, while the automatic core ejection reduces downtime.

What stands out

• Tungsten carbide tipped cutting edges for high wear resistance and long tool life.
• Quick-In shank for rapid mounting on compatible BDS magnetic drilling machines.
• Automatic core ejection and optimized chip removal for continuous operation.
• High concentricity ensures accurate, round holes.
• Suitable for internal cooling systems.

Technical details

• Drill type: Annular cutter / core drill
• Cutting material: Tungsten carbide tipped (TCT)
• Cutting diameter: 18 mm
• Cutting depth: 35 mm
• Shank type: BDS Quick-In
• Number of cutting edges: 4
• Recommended materials: Steel, stainless steel, cast iron, structural steel
• Application: Hole drilling in metal with magnetic drilling machines
• Series: HKK-F
• Cooling: Suitable for internal cooling systems
• Core ejection: Automatic
• Manufacturing standard: Industrial grade

Our verdict

A robust core drill for industrial metalworking, delivering accurate holes and efficient chip removal when paired with a BDS Quick-In magnetic drill.
