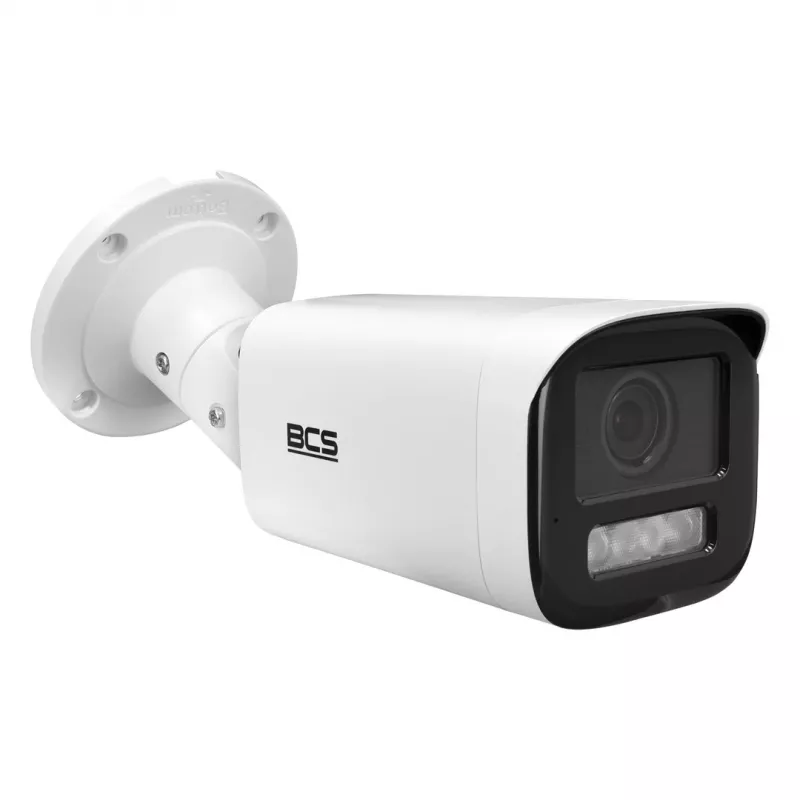

BCS IP Bullet Camera 6MP BCS-V-TIP46VSR5L5(2)

The BCS-V-TIP46VSR5L5(2) is a high-performance 6 Megapixel IP bullet camera designed for professional outdoor surveillance. Featuring a 1/2.9" Progressive Scan CMOS sensor, motor-zoom varifocal lens, and 120dB True WDR, it delivers crisp, detailed images even in challenging lighting conditions. With IP67 weatherproof rating and IR illumination up to 50 meters, this camera is ideal for 24/7 monitoring of perimeters, parking lots, and building entrances.

Advantages

Exceptional 6MP resolution (3072x2048) ensures clear identification of faces and license plates. The motor-zoom lens (2.7-13.5mm) allows remote adjustment of field of view, reducing installation time. Smart analytics including intrusion detection, line crossing, and people counting enhance security efficiency. Built-in microphone and audio I/O enable two-way communication.

Suitable for

• Outdoor perimeter surveillance
• Parking lot monitoring
• Retail and commercial premises
• Warehouse and logistics centers
• Critical infrastructure protection

Key specifications

• Sensor: 1/2.9" 6MP Progressive Scan CMOS
• Max Resolution: 3072x2048 at 20fps
• Lens: Motor-zoom varifocal 2.7-13.5mm, F1.4
• IR Range: Up to 50m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• Min Illumination: 0.005 Lux (Color), 0 Lux (IR on)
• Power: DC 12V, PoE (802.3af), Max 9.5W
• Ingress Protection: IP67
• Audio: Built-in mic, 1x Audio In, 1x Audio Out
• Alarm: 1x Alarm In, 1x Alarm Out
• Local Storage: MicroSD up to 256GB
• Smart Functions: Intrusion, Line Crossing, Object Left/Lost, Face Detection, People Counting, Heat Map
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 3-5 meters for best coverage.
