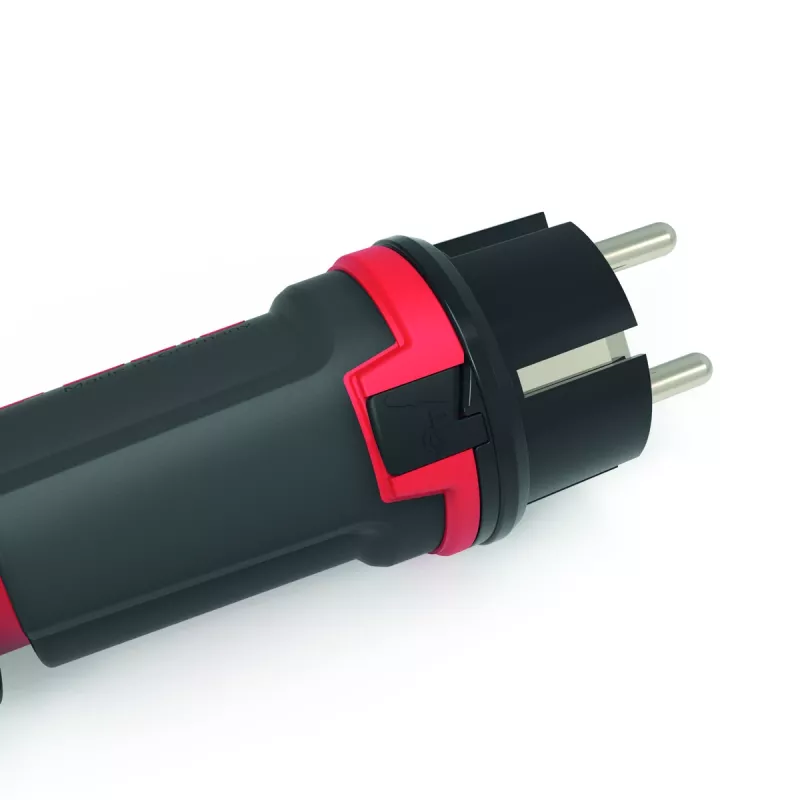

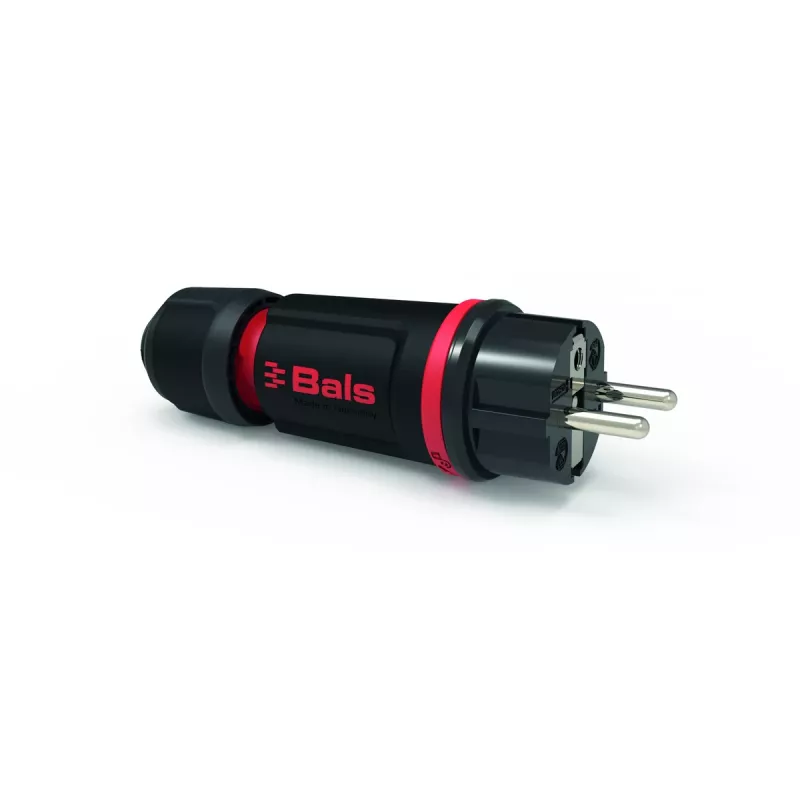

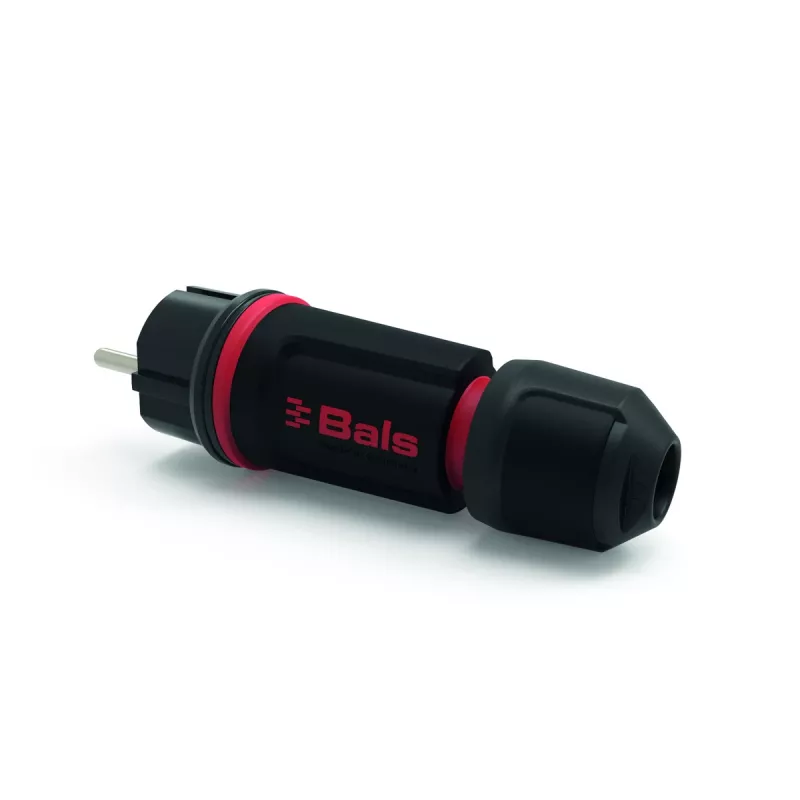

BALS 7373-1 βύσμα αρσενικό Schuko 16A 3 ακίδων 250V IP54

Industrial-grade Schuko plug engineered for reliable power connections in demanding environments, featuring a robust IP54-rated housing for protection against dust and water splashes.

Advantages

The plug's screw terminals ensure a secure and durable connection, while the polyamide housing offers excellent resistance to impact and chemicals. Its 16A current rating and 250V voltage capacity make it suitable for a wide range of industrial and commercial applications.

Suitable for

• Industrial machinery and equipment
• Commercial and outdoor installations
• Portable power distribution
• Construction sites

Key specifications

• Connector type: Plug (Schuko Type F)
• Number of poles: 3 (2P+E)
• Current rating: 16 A
• Voltage rating: 250 V AC
• IP rating: IP54
• Connection type: Screw terminals
• Cable entry: Straight
• Housing material: Polyamide
• Colour: Grey / Black
• Cable diameter range: 6 - 13 mm
• Operating temperature range: -25°C to +40°C
• Frequency: 50/60 Hz
• Contact material: Brass
• Standards: DIN VDE 0620-1, IEC 60884-1

Recommendations

For optimal performance, pair with a compatible IP54-rated socket outlet and use a cable within the specified diameter range. Ensure proper tightening of screw terminals to maintain a secure connection.
