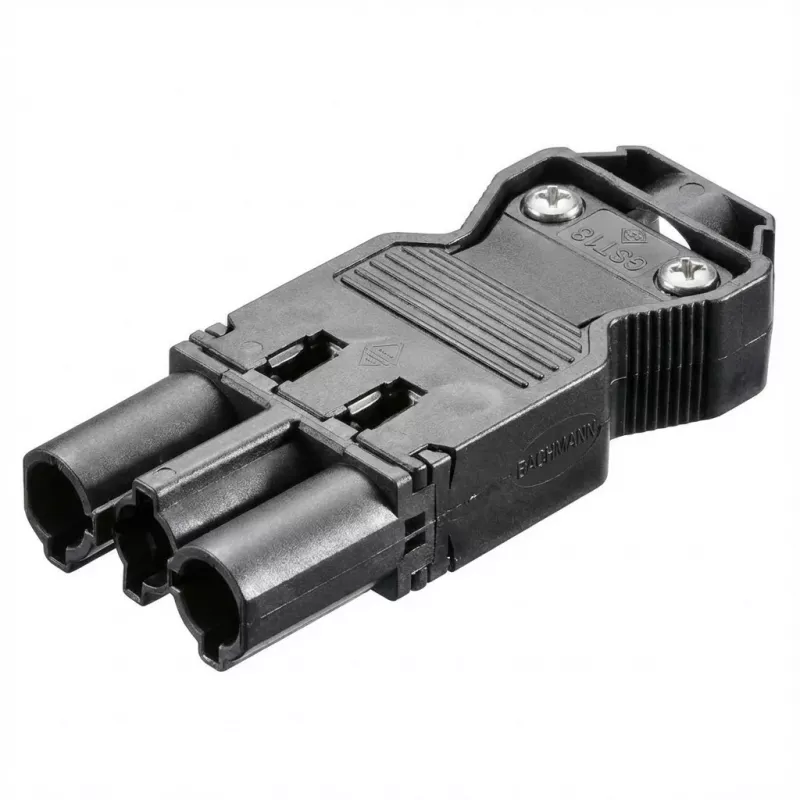

BACHMANN βύσμα συσκευής GST18/3 μαύρο

The BACHMANN Appliance Plug GST18/3 in black is a high-quality, VDE-certified connector designed for reliable power distribution and device connection. Compatible with the Wieland GST18i3 system, this 3-pole male plug features screw terminals for secure cable attachment and a mechanical locking mechanism for a stable connection. Its robust polyamide housing ensures durability, while the copper alloy contacts provide excellent conductivity. Suitable for a wide range of applications, this plug is ideal for use in power distribution units, industrial equipment, and custom cable assemblies.

Advantages

This appliance plug offers easy installation with screw terminals, a secure snap-in locking mechanism, and compliance with VDE standards. Its compact design and straight cable entry make it suitable for tight spaces. The black color provides a professional appearance.

Suitable for

• Power distribution units (PDUs)
• Industrial machinery and equipment
• Custom power cables and extension cords
• Device connections in control cabinets

Key specifications

• Connector type: Wieland GST18i3 compatible
• Gender: Male (plug)
• Number of poles: 3 (L, N, PE)
• Rated voltage: 250 V AC
• Rated current: 16 A
• Termination: Screw terminal
• Cable cross-section: 0.75 - 2.5 mm² (flexible and solid)
• Protection degree: IP20 (unmated), IP40 (mated)
• Housing material: Polyamide (PA)
• Contact material: Copper alloy
• Operating temperature: -5 °C to +100 °C
• Flammability rating: UL94 V-0
• Standards: VDE

Recommendations

For optimal performance, use with matching GST18i3 sockets and ensure proper cable stripping and tightening of screw terminals. This plug is a reliable choice for professional power distribution applications.
