B-Tech SYSTEM 2 ράβδος Ø50mm 1m

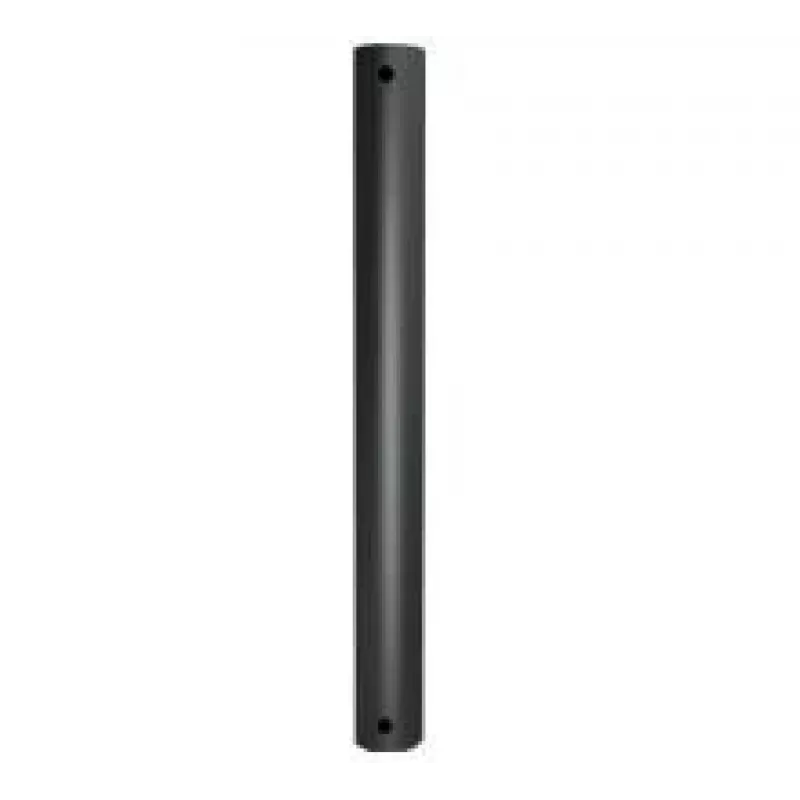

The B-Tech SYSTEM 2 Ø50mm Pole 1m is a black, 1-metre support pole engineered to carry up to 140 kg. Constructed for stability and longevity, this pole has an unobstructed internal bore for discreet cable routing, safety bolt holes at the top and bottom for secure fixing, and includes a BT7057 pole ring to facilitate mounting. It can be cut to a custom length or joined with compatible SYSTEM 2 joiners to extend reach, making it suitable for a range of display and equipment installations.

Advantages

This Ø50mm pole provides a high load capacity of up to 140 kg while maintaining a compact 1 m profile, balancing strength with a discreet appearance. The internal hollow section allows cables to pass through cleanly, reducing visible wiring and simplifying installations. Safety bolt holes at both ends allow secure anchoring to floors, ceilings or mounting plates. The pole is finished in a durable black coating for a professional look and resistance to wear. Additional services such as cutting to length and modular joiner compatibility increase installation flexibility.

Suitable for

• Mounting flat-panel displays and monitors in retail, office or home environments
• Supporting AV equipment, speakers or digital signage
• Creating multi-pole support structures when linked with joiners
• Installations requiring internal cable management for a tidy appearance

Key specifications

• Length: 1 metre (cut-to-length service available)
• Outer diameter: 50 mm
• Maximum load capacity: 140 kg
• Finish: black coating
• Internal: unobstructed bore for cable routing
• Safety features: bolt holes at top and bottom for secure fixing
• Included accessory: pole ring
• Modularity: compatible with SYSTEM 2 joiners to link poles

How to use

Select an appropriate mounting location and verify that floor, ceiling or mounting plate structures can carry the intended load. If required, request the cut-to-length service before installation or trim the pole to size using suitable tools, taking care to maintain a clean cut and protective finish. Route cables through the internal bore before final assembly, then position the pole and align the safety bolt holes. Secure the pole using suitable bolts or fasteners at the top and bottom, and attach the included pole ring and any mounting brackets or equipment. If creating taller assemblies, join poles with compatible SYSTEM 2 joiners and re-check alignment and load distribution.

Recommendations

Confirm that the combined weight of mounted equipment and any additional loads does not exceed 140 kg. Use appropriate fixings for the mounting surface and tighten safety bolts to prevent movement. For installations involving multiple poles or extended heights, verify stability after joining and consider professional installation for high or complex setups. Contact the supplier for cut-to-length requests or guidance on joiner selection to ensure safe and compliant installation.
