AXON-POE Προστασία υπέρτασης Ethernet Gigabit PoE++

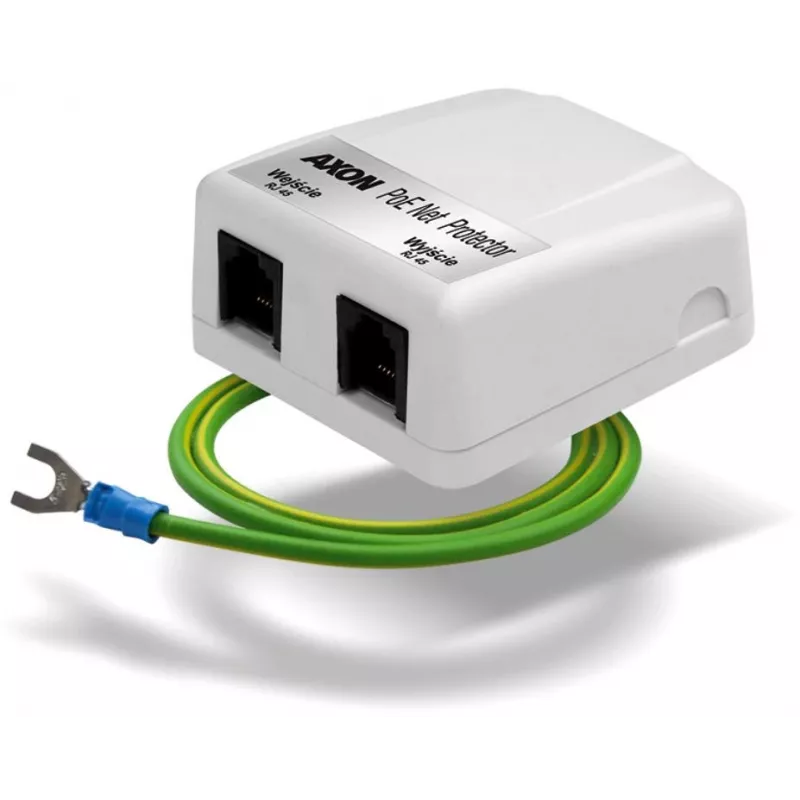

The AXON-POE is a high-performance Ethernet surge protector designed to safeguard Gigabit PoE++ network equipment against transient overvoltages and lightning surges. It protects all four twisted pairs (8 wires) and supports IEEE 802.3af/at/bt PoE standards up to 60V DC, making it ideal for IP cameras, access points, and other powered devices in industrial or outdoor environments.

Advantages

• Comprehensive protection for all 8 lines with low clamping voltage
• Supports PoE, PoE+, and PoE++ up to 60V DC
• Compact aluminum housing for wall or DIN rail mounting
• Low insertion loss (<0.3 dB) ensures signal integrity
• Compliant with IEC 61643-21 and EN 61000-4-5

Suitable for

• IP cameras and NVRs
• Wireless access points and bridges
• PoE switches and injectors
• Industrial Ethernet equipment
• Outdoor network installations

Key specifications

• Protection Type: Ethernet Surge Protection
• Supported Network Speed: Gigabit Ethernet (10/100/1000Base-T)
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Protected Lines: All 8 wires (4 pairs)
• Connectors: 2x RJ-45 (shielded)
• Nominal Operating Voltage (Un): 48V DC
• Max Continuous Operating Voltage (Uc): 60V DC
• Nominal Discharge Current (In): 1kA (8/20µs) per line
• Max Discharge Current (Imax): 10kA (8/20µs) per line, 20kA total
• Voltage Protection Level (Up) Line-Ground: <15V (C1, 1kV/25A)
• Voltage Protection Level (Up) Line-Line: <60V (C1, 1kV/25A)
• Insertion Loss: <0.3 dB (100 MHz)
• Grounding Connection: Screw terminal (min 2.5mm² wire)
• Housing Material: Aluminum
• Mounting Type: Wall mount (optional DIN rail adapter)
• Operating Temperature: -30°C to +65°C
• Relative Humidity: 0-95% (non-condensing)
• Ingress Protection (IP) Rating: IP20
• Compliance Standards: IEC 61643-21, EN 61000-4-5, CE

Recommendations

For optimal protection, ensure proper grounding with a minimum 2.5mm² wire. The AXON-POE is an essential component for any network requiring reliable surge protection in PoE environments.
