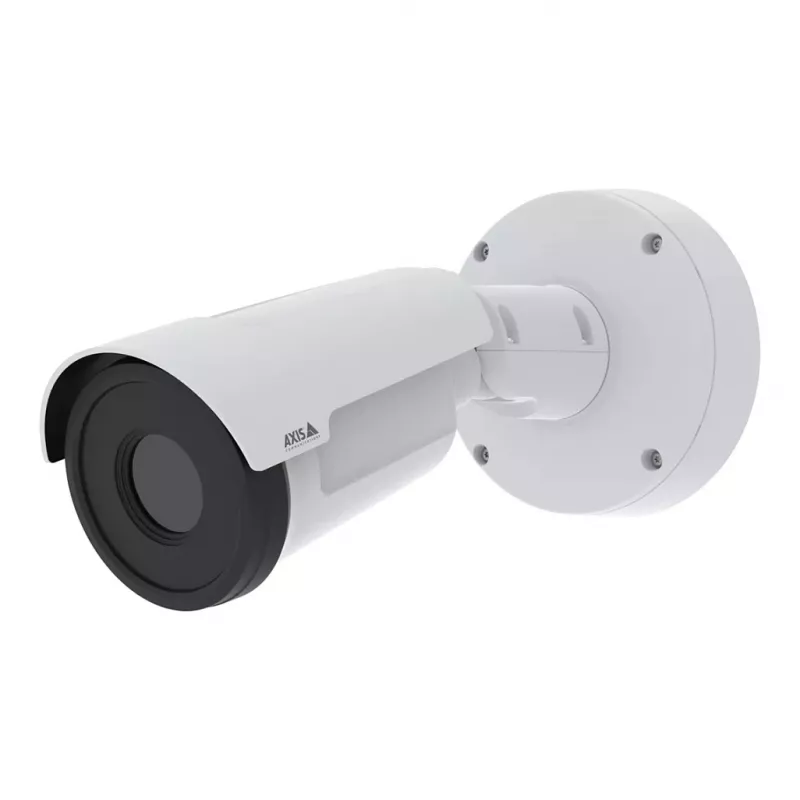

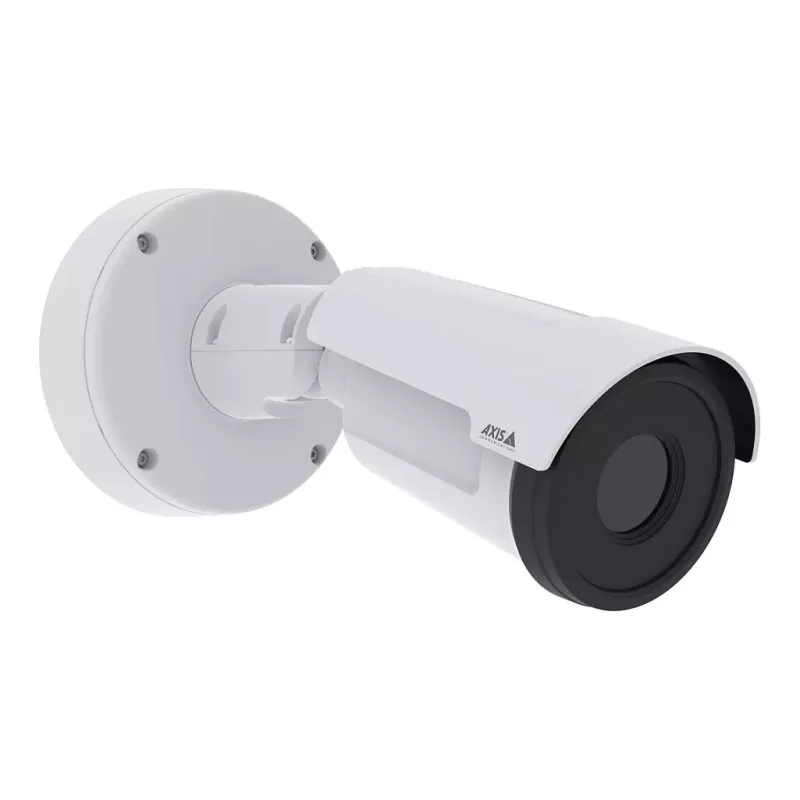

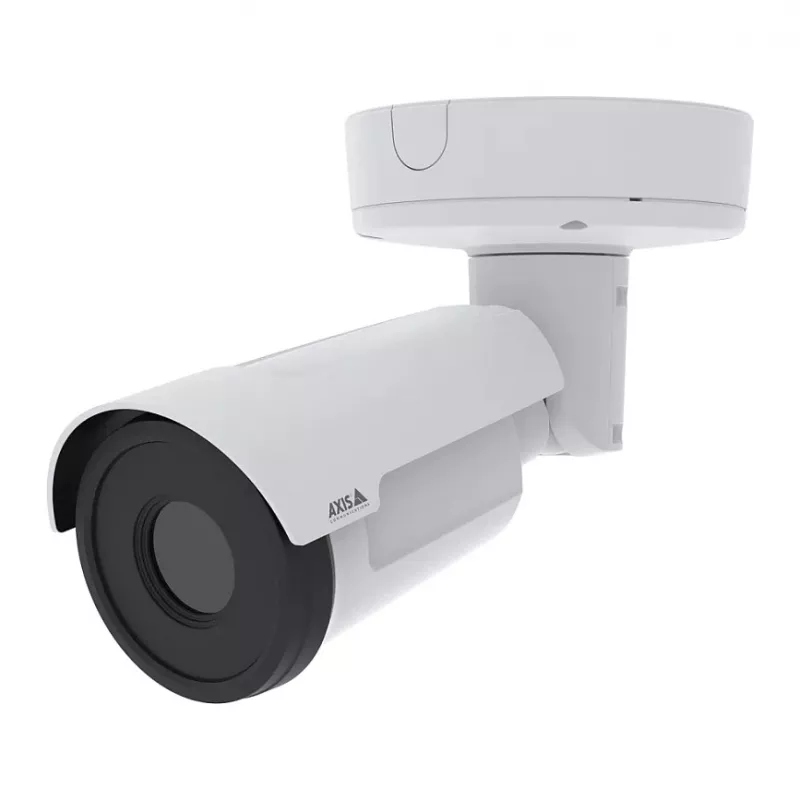

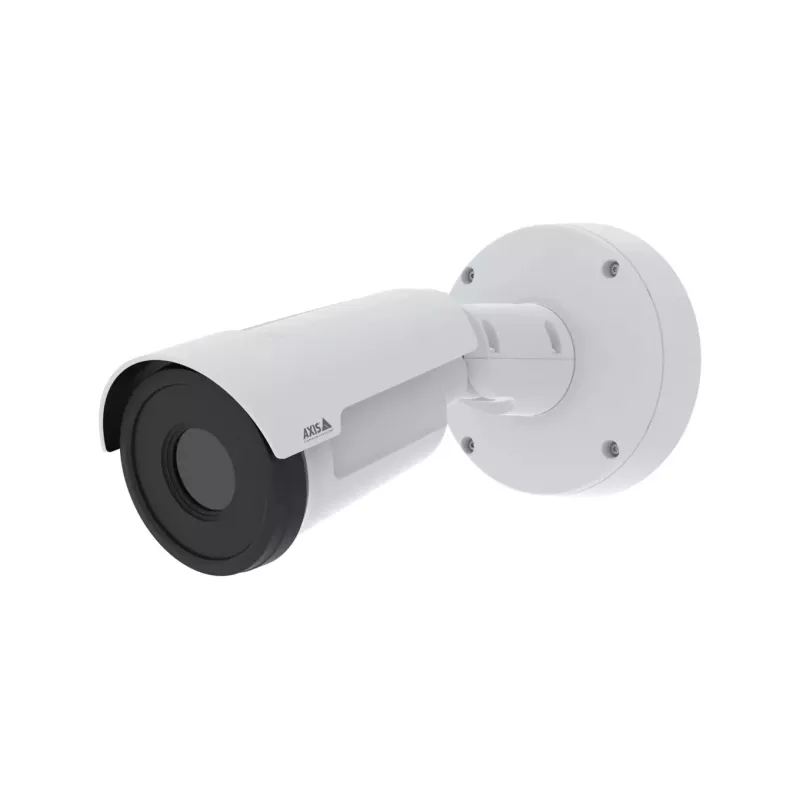

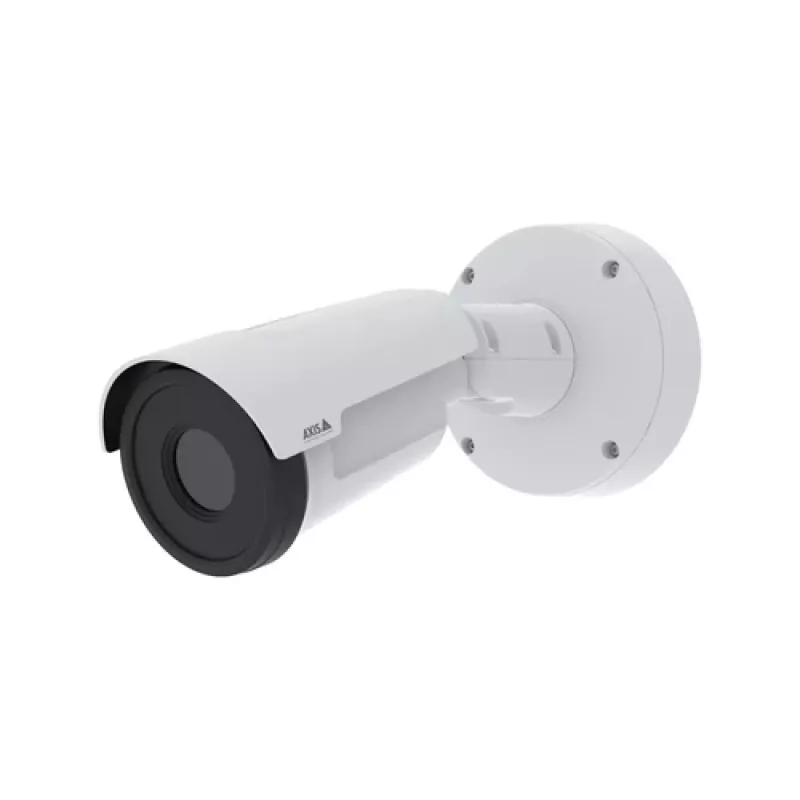

AXIS Q1972-E Θερμική δικτυακή κάμερα bullet, 25 mm, 30 fps

The AXIS Q1972-E is a thermal network bullet camera designed for outdoor surveillance. It features a 640 x 480 thermal sensor and a 25 mm lens with a 24° horizontal viewing angle. The camera supports video streaming at up to 30 fps and includes audio capabilities.

Key features

• Thermal network bullet camera
• Outdoor positioning
• Wired transmission technology
• Wall mounting type
• Form factor: Bullet
• Product colour: Black, White
• LED indicators
• Housing material: Aluminium, Polycarbonate (PC)
• International protection (IP) code: IP66, IP67
• IK code: IK10
• Weatherproof
• Preset points
• Thermal sensitivity (NETD): 20 mK
• Video streaming
• Flip & mirror
• Text overlay
• Image stabilizer
• Audio system - full duplex
• Audio detection
• Ethernet/LAN
• Quality of Service (QoS) support
• Integrated card reader
• Microphone input
• Terminal block connector
• DC power connector
• Video motion detector
• Active tampering alarm
• Privacy
• Pixel counter
• Digest authentication
• Operating manual

Specifications

• Brand: Axis
• MPN: 03031-001
• Ethernet LAN: Yes
• Material: Polycarbonate
• Camera pixel size: 17 µm
• Sensor type: Microbolometer
• Effective sensor resolution (thermal module): 640 x 480 pixels
• Lens diameter: 2.5 cm
• Closest focusing distance: 18.5 m
• Infrared spectral band: 8 - 14 µm
• Maximum resolution: 640 x 480 pixels
• Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
• Up to 30 frames per second: 30 fps
• Gain control type: Auto
• Image quality adjustment: Brightness, Contrast, Sharpness
• Bitrate control: Variable Bitrate (VBR)
• Supported audio formats: AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
• Sample rates: 8 - 48 kHz
• Ethernet interface type: Fast Ethernet, Gigabit Ethernet
• Network standard: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
• Streaming method: Multicasting
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
• Flash memory: 8192 MB
• RAM capacity: 2048 MB
• Number of Ethernet LAN ports (RJ-45): 1
• RS-422 ports: 1
• RS-485 ports: 1
• Supported security algorithms: 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP
• Alert notification type: E-mail
• Power source: DC, PoE
• Power consumption (typical): 5 W
• Power consumption (max): 12.95 W
• Power consumption (Power over Ethernet (PoE)): 12.95 W
• Operating temperature: -40 - 60 °C
• Storage temperature range: -40 - 65 °C
• Relative operating humidity: 10 - 100%
• Storage humidity: 5 - 95%
• Width: 132 mm
• Depth: 264 mm
• Height: 132 mm
• Weight: 1.4 kg
• Compliance certificates: REACH, RoHS
• Number of cameras: 1
• Does not contain: CFR, PVC/BFR
